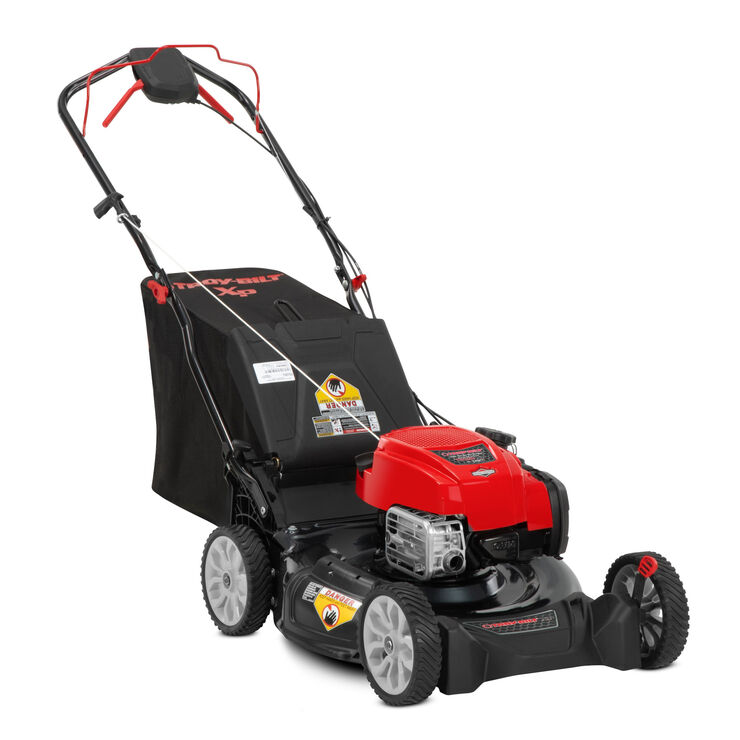

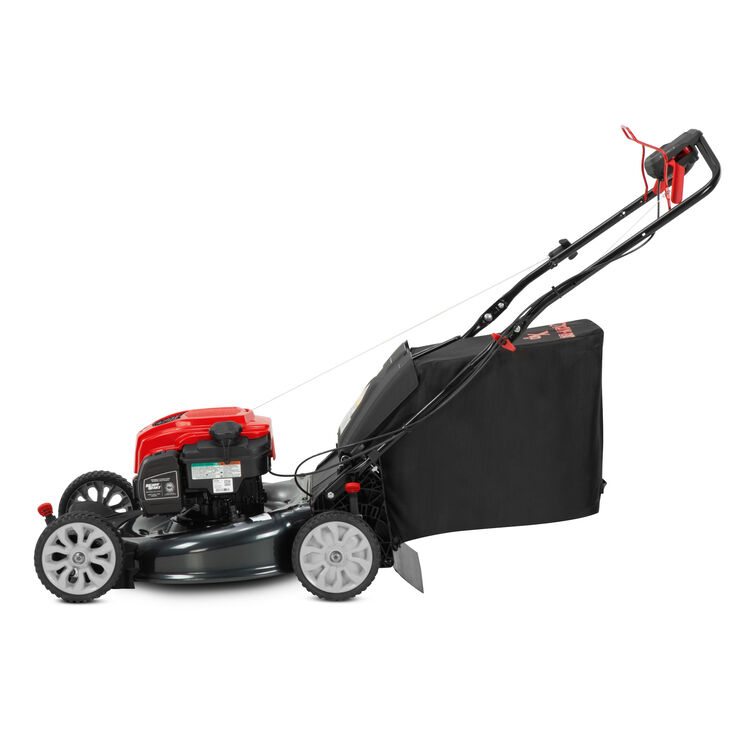

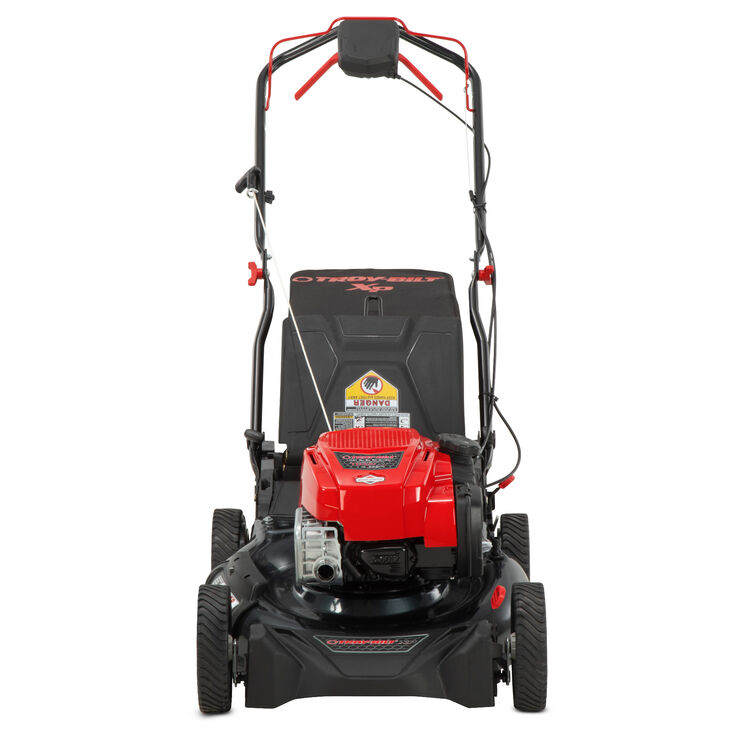

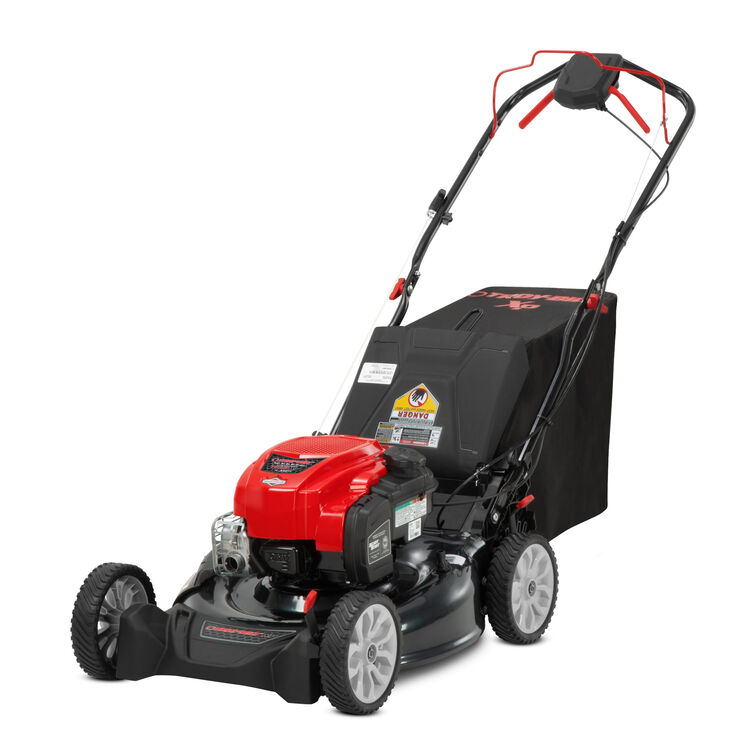

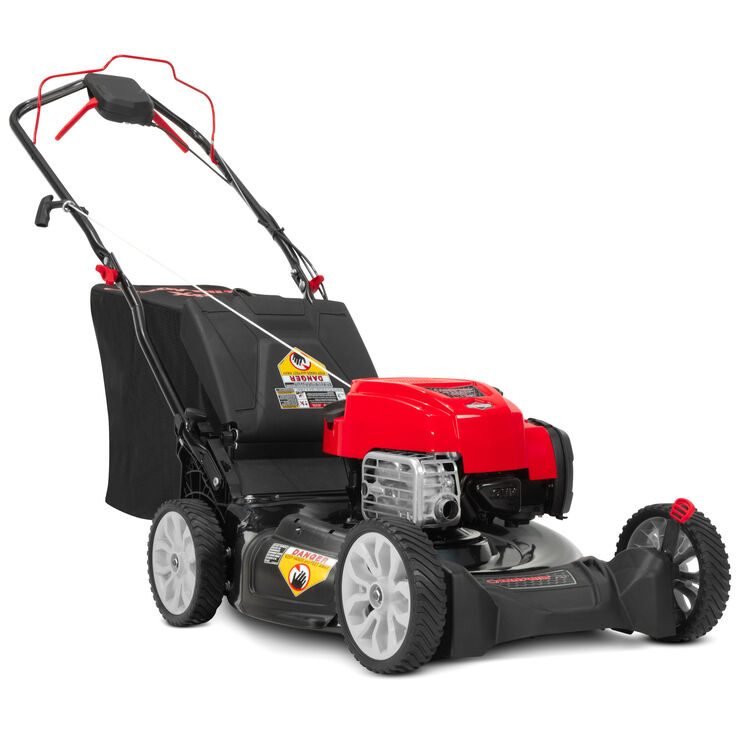

TB320 XP Self-Propelled Lawn Mower
Interest will be charged from the purchase date if the purchase balance is not paid in full at the end of the promotional period or if you make late payments. Advertised minimum payment is greater than required minimum payment.
Yard work has never been easier thanks to the commercial-grade power of the Troy-Bilt TB320 XP self-propelled walk behind lawn mower. The TB320 XP is powered by a reliable 163cc Briggs & Stratton engine featuring ReadyStart™ technology for simple, no prime no choke starting. Rear wheel drive with variable four-speed transmission provides improved control on hills, even when bagging.
Documents and Guides
- Troy-Bilt Check, Don't Change™ engine eliminates the need to change oil by simply checking before each use and topping off as needed
- Built In America with U.S and Global Parts since 1937
- XP™ Series 3-year limited warranty for extended peace of mind
- Rear wheel drive transmission with variable speed provides more control and traction on hills or when using rear bag
- Larger 2.3 bushel rear bag collects more clippings for easy clean up or composting
- Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
- A $49 large-package shipping surcharge, levied and collected by UPS, will be applied at Checkout.
TB320 XP Self-Propelled Lawn Mower Features
Check, Don't Change(TM)
Troy-Bilt Check, Don't Change(TM) engine eliminates the need to change oil by simply checking before each use and topping off as needed.
TriAction® Cutting System
TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Easy Clean Up
1.9 bushel rear bag collects grass clippings for easy clean up or composting.
Maintain a Healthy Lawn
Included mulch kit helps maintain a healthy lawn
Easily Change Cutting Heights
Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in. H
Side discharge chute comes with handy, built-in clip to attach to handle when not in use
Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
Rear Wheel Drive
Rear wheel drive transmission with variable speed provides more control and traction on hills or when using rear bag
Headquarted in Valley City, OH, our reliable equipment is designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
3-year limited warranty for extended peace of mind
Specs & Maintenance
- Engine Brand Briggs & Stratton®
- Engine Model 725 EXi
- Engine Model Number 104M02-0004
- Engine Displacement 163cc
- Starter Type Recoil
- Fuel Tank Capacity 1.0 qt
- Engine Oil Capacity 15 oz
- Choke ReadyStart
- Drive System RWD
- Deck Cutting Width 21 in
- Deck Wash Yes
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System Tri-Action
- Mulch Plug Integrated
- Discharge Location Side
- Warranty 3-year limited
- Commercial Warranty No
- Handle Adjustable Ergo
- Drive Controls Dual Lever
- Tread Pattern S-Wave
- Front Wheels 8"
- Rear Wheels 8"
- Bearing Type Poly Bushing
- Model Number 12AVO2A3766
- Grass Bag Capacity 2.3 Bushel
- Bagger Type Dust Blocking
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
The Operator's Manual is an important part of your new outdoor power equipment. It will help you assemble, prepare, maintain and safely operate your machine. Your outdoor power equipment was built to be operated according to the rules and instructions for safe operation which are contained in the operator's manual and on the machine itself.
Safety rules and instructions, if not followed, could endanger the personal safety and/or property of the operator and others. Read and follow all instructions in the manual before attempting to operate your outdoor power equipment. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. Your machine is capable of amputating hands and feet and throwing objects. Failure to observe the safety rules and instructions, both on the machine and in the Operator's Manual, could result in serious injury or death.
Important: Troy-Bilt, its parents, affiliates and subsidiaries, is concerned about the safety of its customers and others. Due to the size of the Operator's Manual, some Operator's Manuals are broken down into two or more segments so that the entire Operator's Manual can be downloaded easily. Troy-Bilt is requiring all those who wish to download a copy of the Operator's Manual to acknowledge that he/she will download the portion of the Operator's Manual that contains the Important Safe Operation Practices section, as stated below. This is to ensure that this section is reviewed and accessible when operating, servicing and/or maintaining the machine.
NOTICE: BY CONTINUING I AFFIRM THAT I WILL DOWNLOAD THAT PORTION OF THE OPERATOR'S MANUAL WHICH CONTAINS SECTION 1: IMPORTANT SAFE OPERATION PRACTICES, AND THAT I WILL READ AND FOLLOW THE SAFETY RULES AND INSTRUCTIONS PROVIDED.
By clicking "I AGREE" below, you certify that you have read and accepted the above notice.
