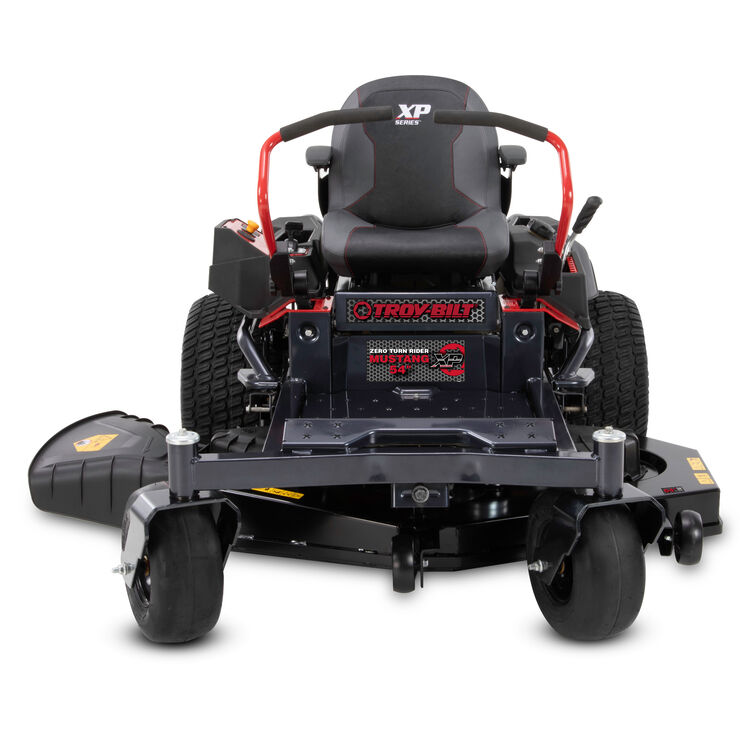

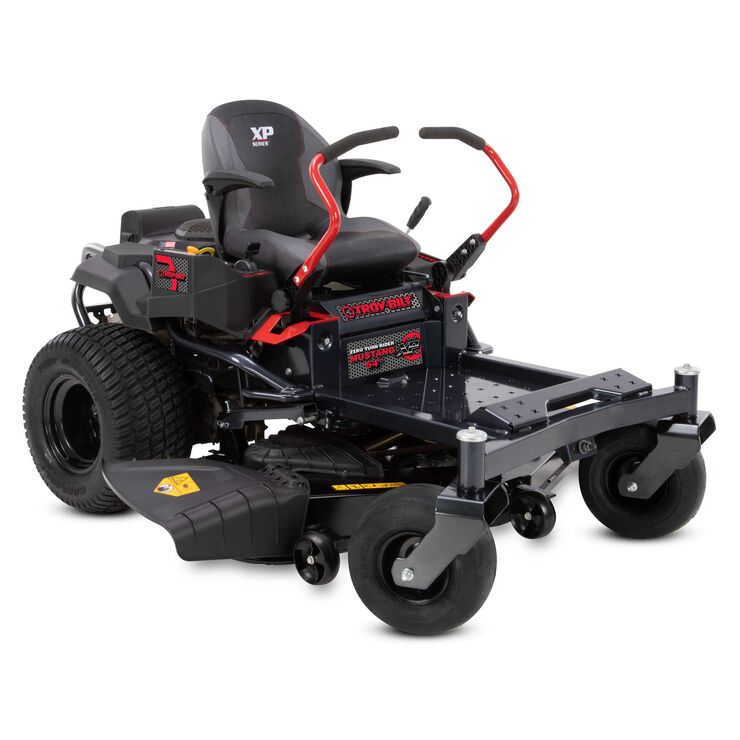

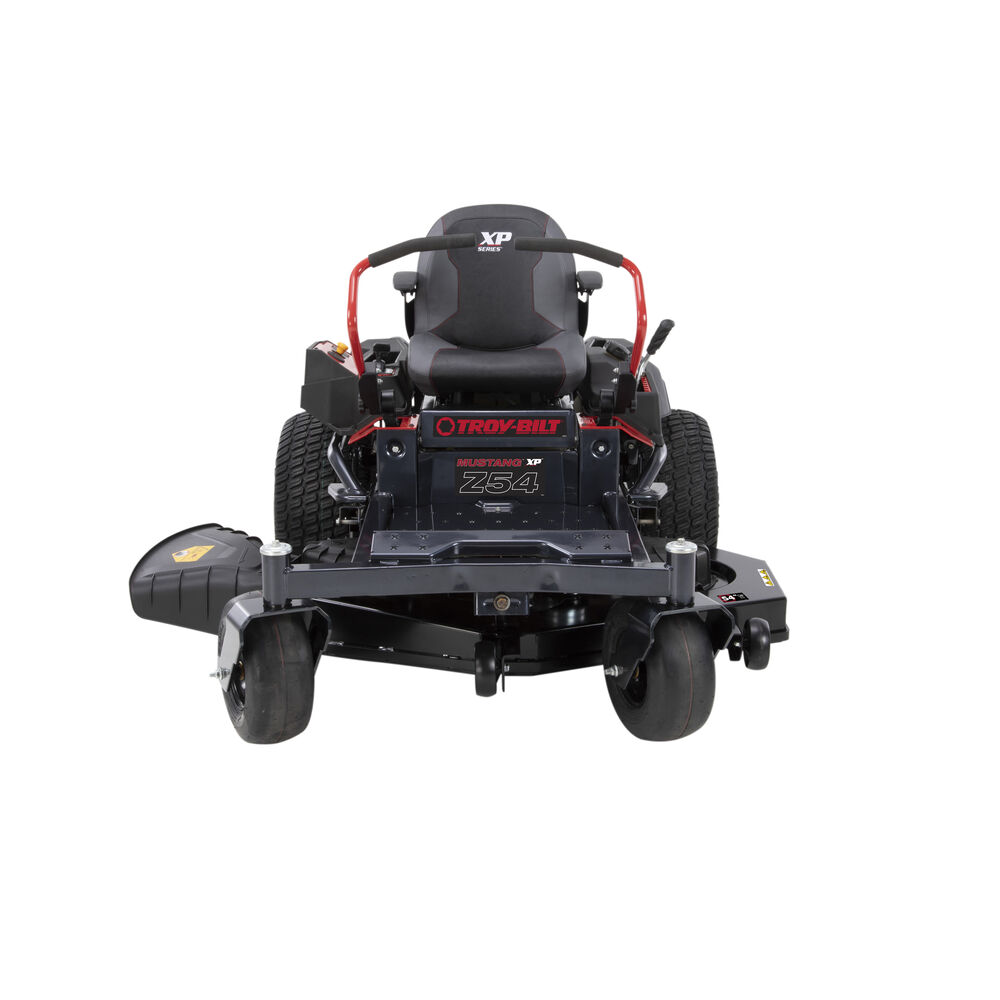

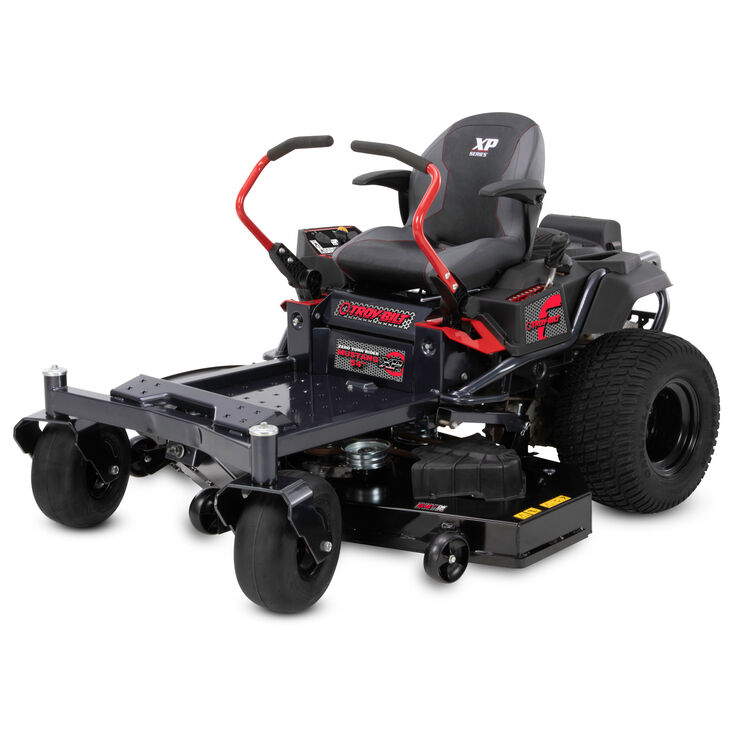

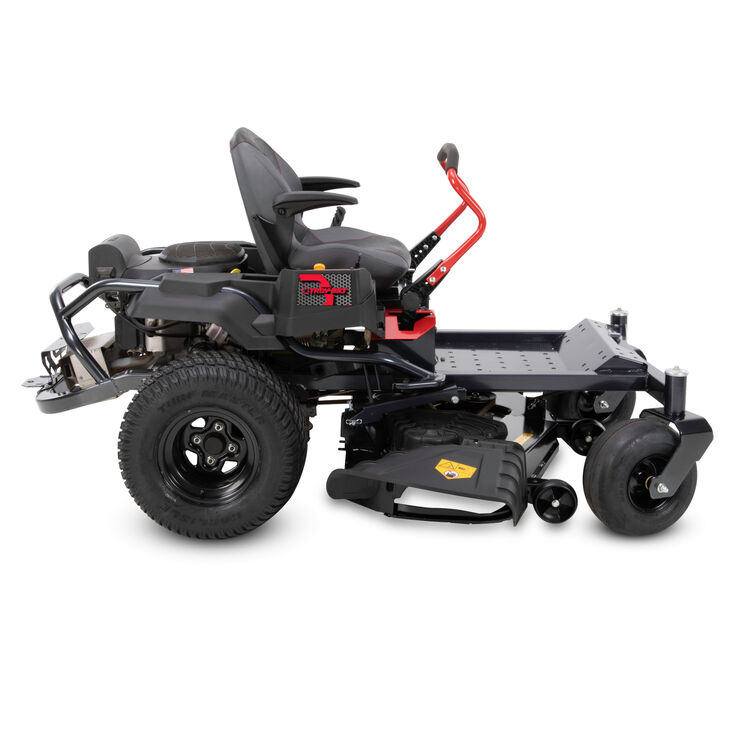

Mustang Z54 XP Zero-Turn Rider
Quickly mow large areas with ease thanks to the Troy-Bilt Mustang Z54 FAB XP zero-turn riding lawn mower. The Mustang Z54 FAB XP provides elite durability and dependable performance in rugged conditions thanks to its heavy-duty, fully welded frame. A 54" fabricated steel deck brings enhanced durability in challenging mowing conditions with anti-scalp wheels to prevent turf damage. Dual hydrostatic transmissions provide a true zero-turn performance with quicker mow times and effortless mobility. A powerful 725cc twin-cylinder KOHLER PRO engine delivers reliable power and a quieter, more balanced performance with less vibration. A high back seat and padded lap bars allow you to ride in comfort and enjoy your cut. With a 3-year limited warranty and limited lifetime frame warranty, you can count on Troy-Bilt to help make yard work easier.
Documents and Guides

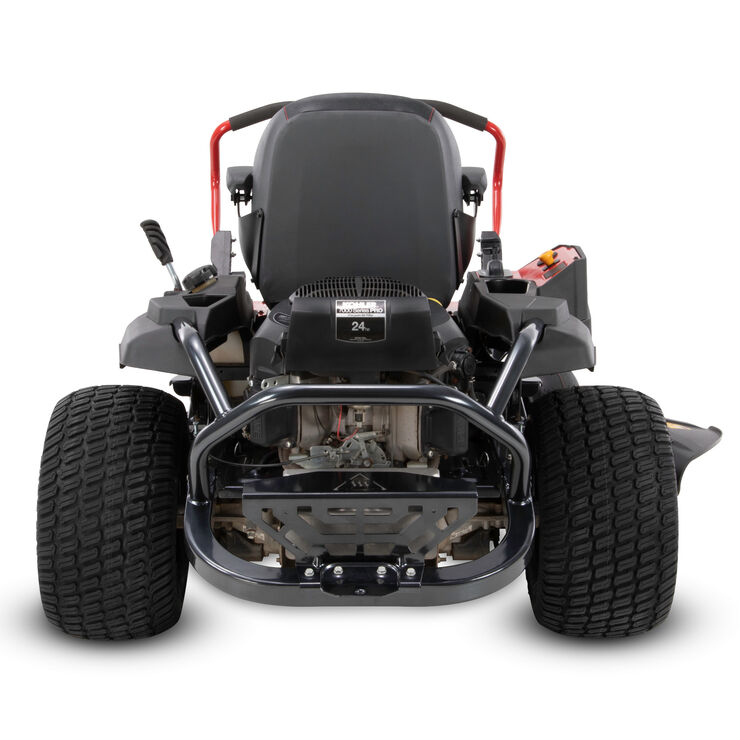

- Powerful 24 HP/725cc twin-cylinder KOHLER PRO engine delivers quieter, more balanced performance with less vibration
- 54" reinforced fabricated steel deck provides enhanced durability while the anti-scalp deck wheels prevent turf damage and deliver a clean, even cut
- Heavy-duty, full length, fully welded, 2" tubular frame is designed to absorb impact, provide maximum stability and covered by a limited lifetime warranty
- Dual hydrostatic transmission delivers true zero turn performance for quicker mow times and improved maneuverability
- Ride in more comfort with the high-back seat with armrest and foam grip steering controls
Mustang Z54 XP Zero-Turn Rider Features
Heavy-duty 2" tubular frame absorbs impact, provides maximum stability and is covered by a limited lifetime warranty.

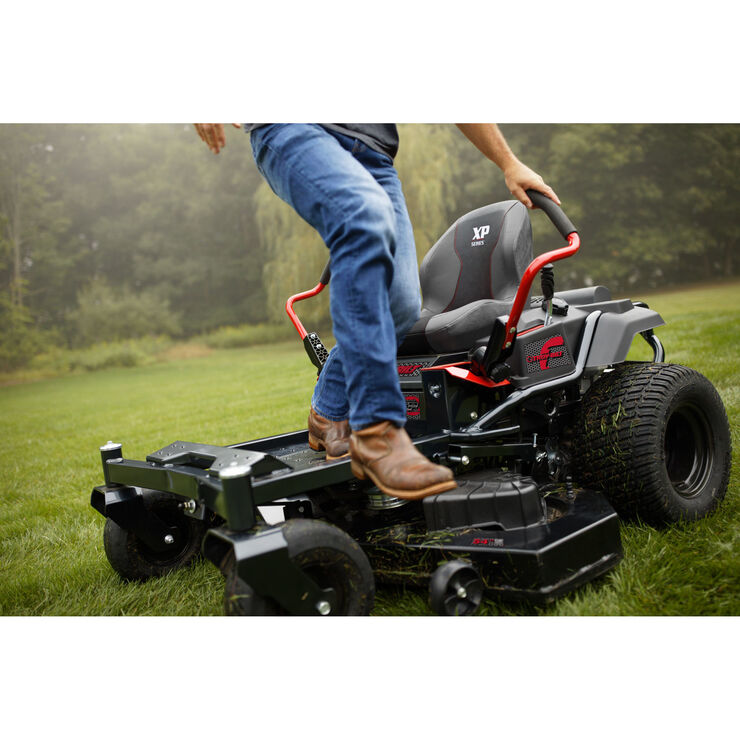

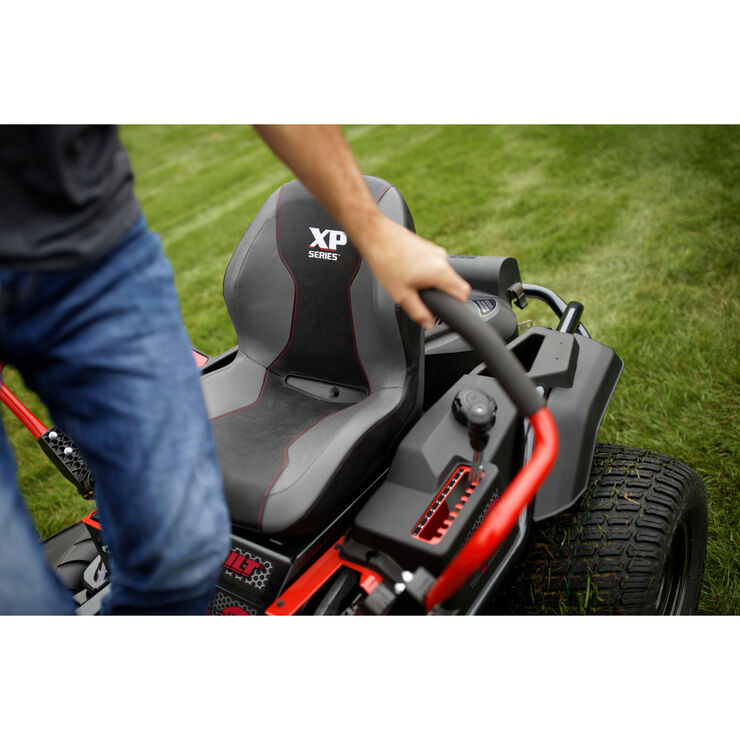

Ride in more comfort and with reduced vibration thanks to the high-back seat and foam grip steering controls.
Easy Blade Engagement
Quickly engage the cutting deck with conveniently located, console-mounted knob.
Lap bar controls have an integrated parking brake to safely and quickly stop the mower.
Quickly Adjust Cutting Height
8-position height adjustment on the fender makes it easy to change cutting heights from 1.5" - 4"
Reduced Turf Damage
Anti-scalp deck wheels and Turf Master tires keep your lawn looking beautiful.

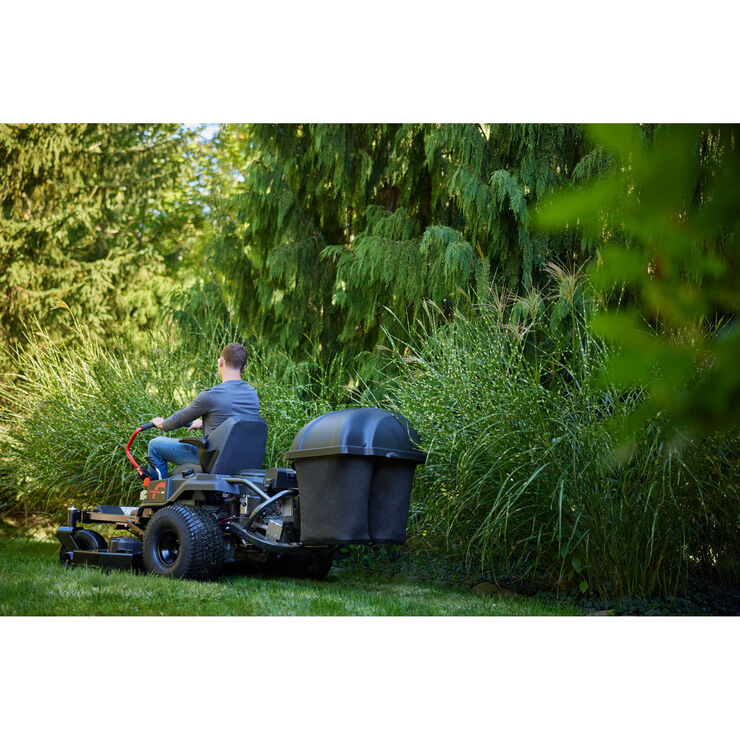

Make yard clean up easier by using an available rear bagger to collect grass clippings and leaves for composting or disposal.

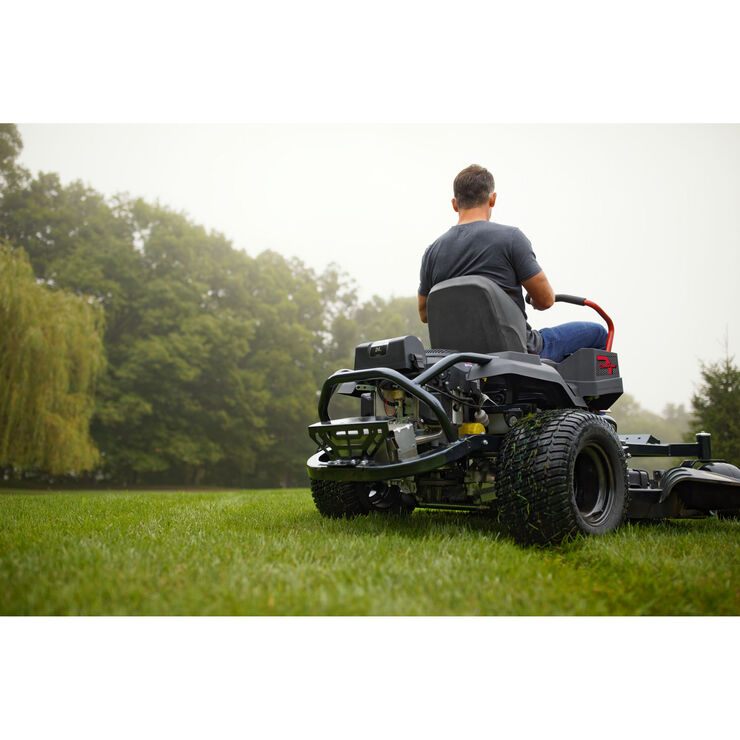

Convenient rear hitch makes attaching available tow-behind attachments, like dump carts, spreaders or aereators, easy and quick.
Extra power, durability and comfort features in the Troy-Bilt XP line of mowers
Fabricated 11-gauge steel cutting deck provides enhanced durability.
Headquartered in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— with U.S. and global parts — from Ohio and Mississippi to Tennessee and Arizona.
Limited lifetime warranty on full-length tubular frame and a 3-year limited on other components.
Specs & Maintenance
- Engine Brand Kohler®
- Engine Model 7000 series PRO
- Engine Model Number KT735
- Engine Displacement 725cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
- Battery 210 CCA
- Battery Type AGM (Absorbed Glass-Mat)
- Battery Voltage 12V
- Transmission Tuff Torq TZ 350
- Forward Speed 7 MPH / 11.3 Km/H
- Reverse Speed 3.5 MPH / 5.6 Km/H
- Drive System Hydrostatic
- Transmission Housing Cast aluminum
- Deck Cutting Width 54 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Reinforced Flat Top
- Blade(s) 3
- Deck Lift Foot pedal
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping 3 gauge wheels
- Deck Positions 8
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
- Seat Type 18" high back
- Armrests Yes
- Seat Adjustment Lever
- Rear Tires 20''x 12''- 8''
- Front Tires 13"x 6.5"-6"
- Tire Tread Turf Master / Multi Trac
- Hour Meter Yes
- Mulch Kit Available separately
- Headlight(s) No
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17ASFAC3A66
- Warranty 3-year limited residential
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Hosepower *As rated by engine manufacturer
