Mustang Z50 Zero-Turn Rider
The Mustang Z50 with 50-in cutting deck moves easily across yard with the added support of deck wheels and a front roller to smooth over bumps. You'll get dependable starting and performance with powerful Troy-Bilt engine and a more comfortable ride with the adjustable high back seat.
- 679cc V-twin OHV Troy-Bilt engine features full pressure lubrication to ensure smooth delivery of oil to critical components and a forged steel crankshaft making it stronger and more durable
- Built In America with U.S and Global Parts since 1937
- Large 50-in deck mows faster and more efficiently
- Heavy-duty, full length, fully welded, 2-in tubular frame is designed to absorb impact, provide maximum stability and covered by a limited lifetime warranty
- Ride in more comfort and reduced vibration with the high-back seat and foam grip steering controls
- Large 3.5 gallon fuel tank means less stopping for fill-ups when mowing for extended periods of time
Mustang Z50 Zero-Turn Rider Features
Lasting Durability

679cc V-twin OHV Troy-Bilt engine features full pressure lubrication to ensure smooth delivery of oil to critical components and a forged steel crankshaft making it stronger and more durable.
Pride

Headquarted in Valley City, OH, our reliable equipment is designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
Mow faster, more efficiently

Large 50-in. deck mows faster and more efficiently.

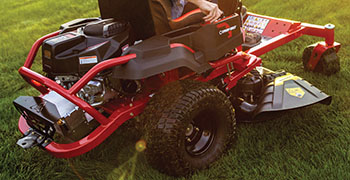

Heavy-Duty Frame

Heavy-duty, full length, fully welded, 2-in tubular frame is designed to absorb impact, provide maximum stability and covered by a limited lifetime warranty.

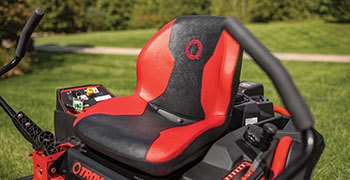

Increased Comfort

Ride in more comfort and reduced vibration with the high-back seat and foam grip steering controls.

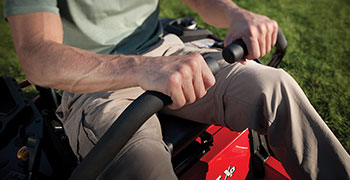

Safety First

Lap bar controls have an integrated parking brake to safely and quickly stop the mower.
Keep Your Yard and Deck Clean

Attach a standard garden hose to the deck wash port to quickly clean underside of deck and prevent buildup of clippings
Versatile Capabilities

Add versatility to your riding mower with optional attachments like a rear bagger or mulch kit (sold separately).
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt
- Engine Displacement 679cc
- Fuel Tank Capacity 3.5 gallons
- Cylinders/Material Twin Cylinders
- Engine Oil Capacity 2 qt.
- Choke Separate and Choke Throttle
Battery
- Battery 230 CCA
Drive System
- Transmission Dual EZT 2200
- Forward Speed 7 MPH
- Reverse Speed 2.5 MPH
Cutting Deck
- Deck Cutting Width 50"
- Deck Wash Included
- Deck Material 12-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Stamped
- Blade(s) 3
- Anti-Scalping 3 Anti-Scalping Wheels
- Deck Positions 9 Positions
Warranty
- Warranty 3-year limited residential
- Frame Warranty Limited lifetime frame warranty
Chassis
- Rear Tow Hitch Included
Controls
- Steering Control Lap Bar
- Display Hourmeter
Dimensions
- Dimensions L/W/H 80”(L) x 60.77”(W) x 43.5”(H)
Additional Specifications
- Mulch Kit Optional
- Bagger Optional
- Model Number 17AAFACQ066
Model | Manual | Form Number | |
---|---|---|---|
17AAFACQ066 | MANL:OPER:BILING:MTD ENG:679CC | ||
MANL:OPER:BILING:MTD ENG:679CC | 769-17450 | Download | |
MANL:OPER:BILING:RZ19 Consolid | 769-18950C | Download | |
MANL:OPER:BILING:RZ19 Consolid | 769-18950D | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-17172 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-23593 | Download | |
SHEET:SUP:BILING:EPA:EVP:18-19 | 769-17171 | Download | |
SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
SHEET:SUPP:FRENCH:WARR/PARTS:TB RZ19 | 769-19031D_FR | Download | |
SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-19031B | Download | |
SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-19031D | Download |
