Mustang 54 XP Zero-Turn Rider
Item#:
17ASFAC3066
Financing Available
$3,799.00
Financing Available
Mustang 54 XP Zero-Turn Rider
Item#:
17ASFAC3066
$3,799.00
Premium power, performance and reliable starting every time with Kohler Pro 7000 Series engine. The large 54-in reinforced flat-top deck on the Mustang 54 XP mows large area faster and moves easily across the yard with the support of two deck wheels and a front roller to smooth over bumps.
- Kohler PRO 7000 Series engine delivers premium power and performance
- Built In America with U.S and Global Parts since 1937
- Large 54-in deck mows faster and more efficiently
- Heavy-duty, full length, fully welded, 2-in tubular frame is designed to absorb impact, provide maximum stability and covered by a limited lifetime warranty
- Ride in more comfort and reduced vibration with the high-back seat and foam grip steering controls
- Large 3.5 gallon fuel tank means less stopping for fill-ups when mowing for extended periods of time
Mustang 54 XP Zero-Turn Rider Features

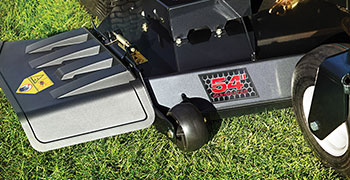

Mow faster, more efficiently

Large 54-in. deck mows faster and more efficiently.
Safety First

Lap bar controls have an integrated parking brake to safely and quickly stop the mower.
Versatile Capabilities

Add versatility to your riding mower with optional attachments like a rear bagger or mulch kit (sold separately).
Pride

Headquarted in Valley City, OH, our reliable equipment is designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model Pro 7000 Series
- Engine Model Number KT735
- Engine Displacement 725cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 230 CCA
- Battery Type Standard Lead-Acid
- Battery Voltage 12V
Drive System
- Transmission Hydro-Gear ZT 2800
- Forward Speed 7.5 MPH
- Reverse Speed 3.5 MPH
- Drive System Hydrostatic
Cutting Deck
- Deck Cutting Width 54 in
- Deck Wash No
- Deck Material 11-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Reinforced Flat Top
- Blade(s) 3
- Deck Lift Foot pedal
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping 3 gauge wheels
- Deck Positions 8
Warranty
- Warranty 3-year limited residential
- Frame Warranty Lifetime Limited
- Deck Shell Warranty Lifetime limited
- Commercial Warranty No
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius Zero°
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Steering Control Lap Bars
Comfort
- Seat Type 18" high back
- Armrests Yes
- Seat Adjustment Lever
Wheels
- Rear Tires 20''x 12''- 8''
- Front Tires 13"x 6.5"-6"
Additional Specifications
- Headlight(s) No
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17ASFAC3066
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
