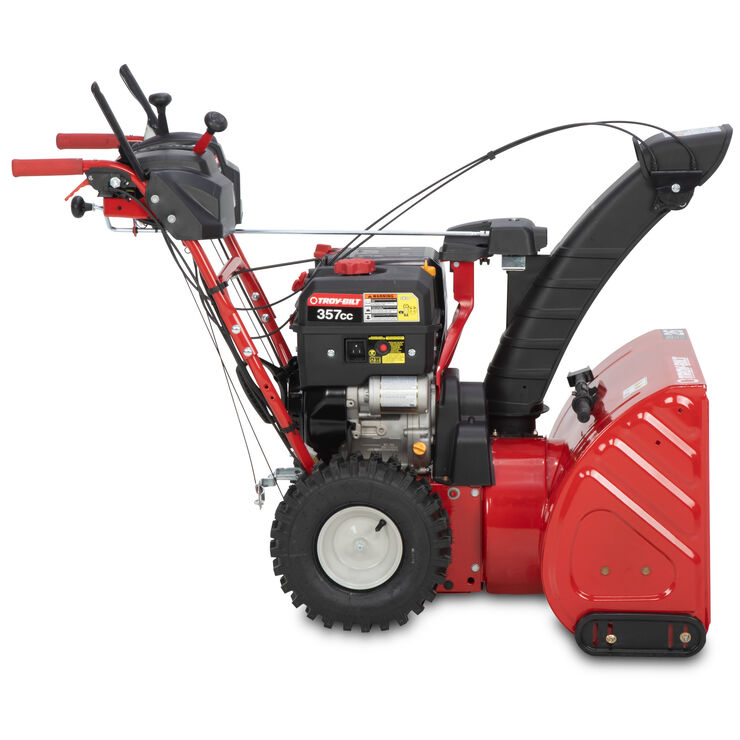

Vortex 2610 Snow Blower
Interest will be charged from the purchase date if the purchase balance is not paid in full at the end of the promotional period. Advertised minimum payment is greater than required minimum payment.

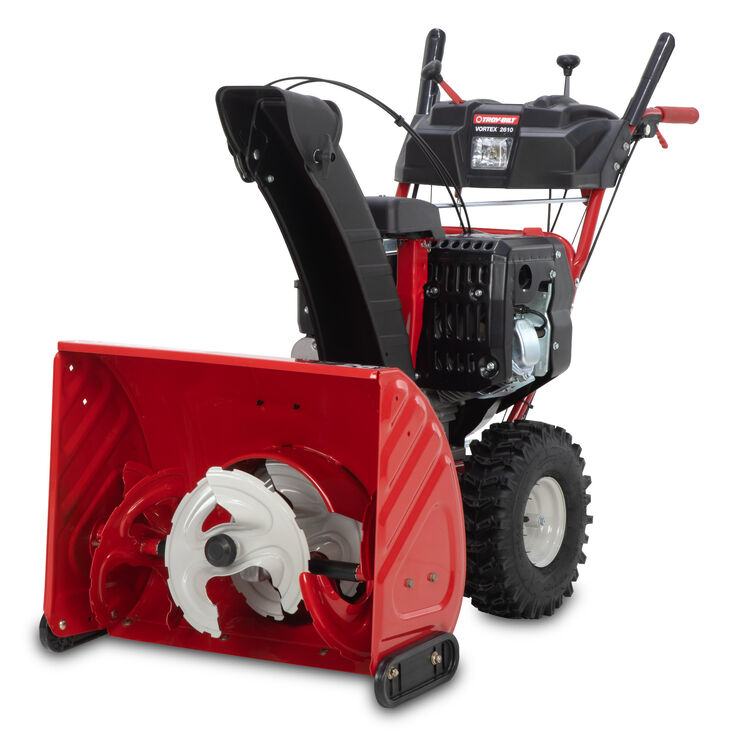

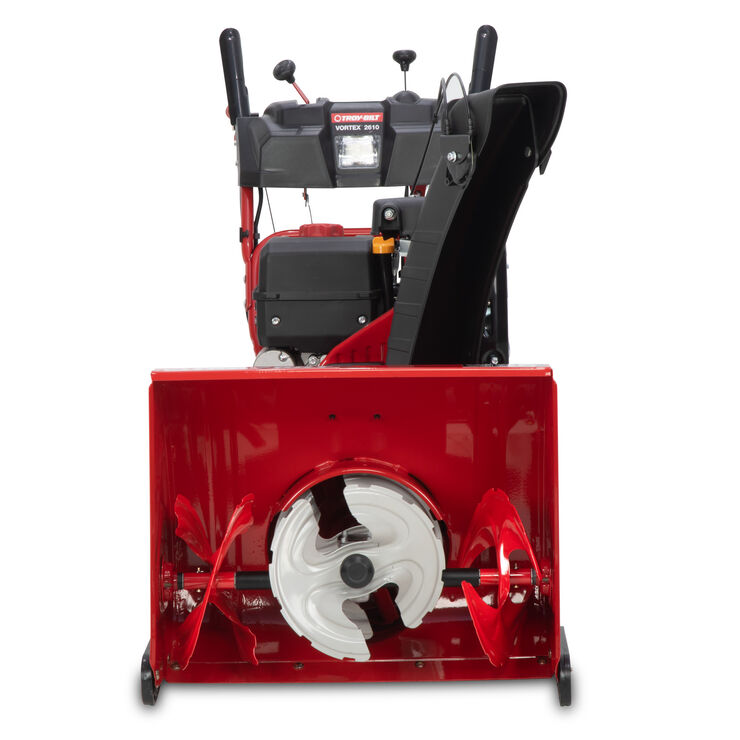

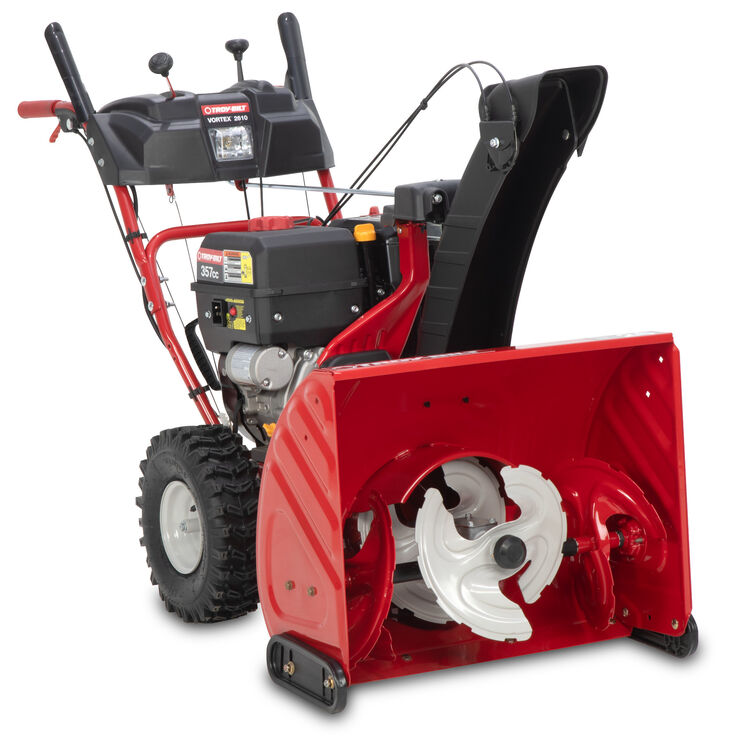

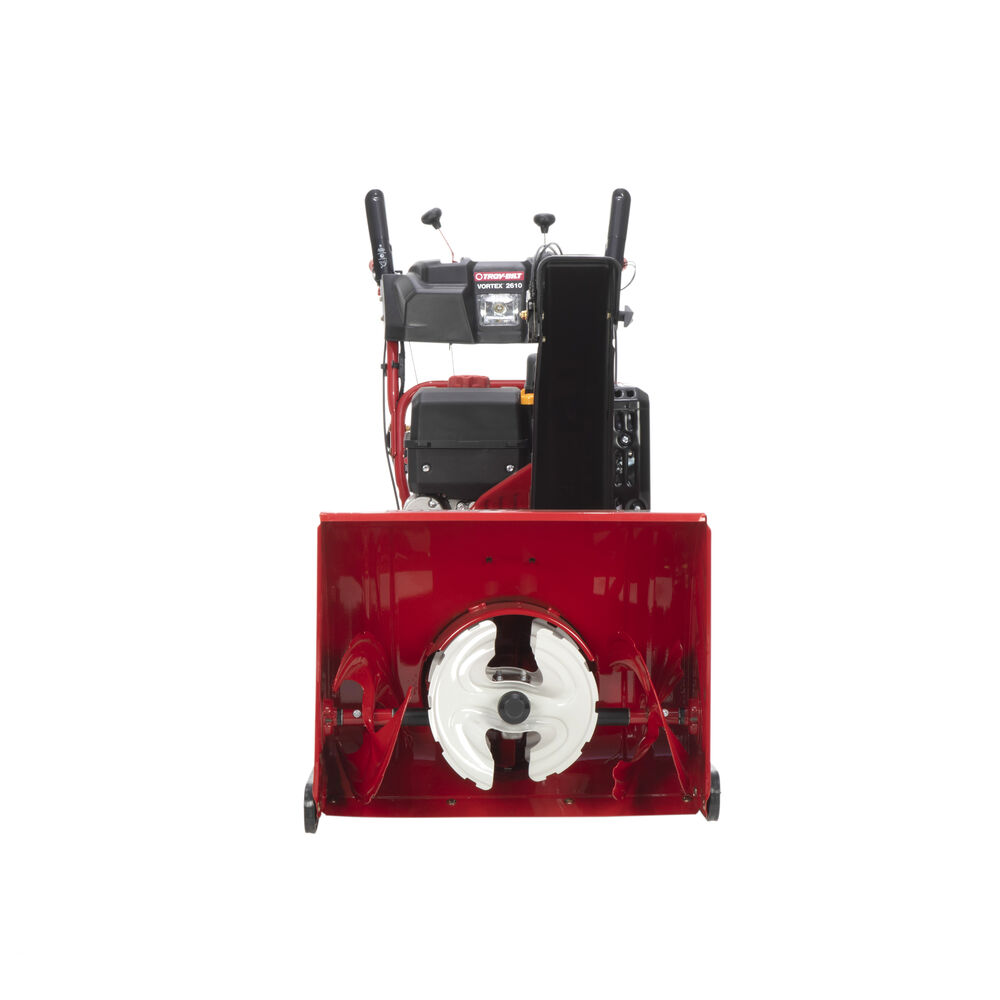

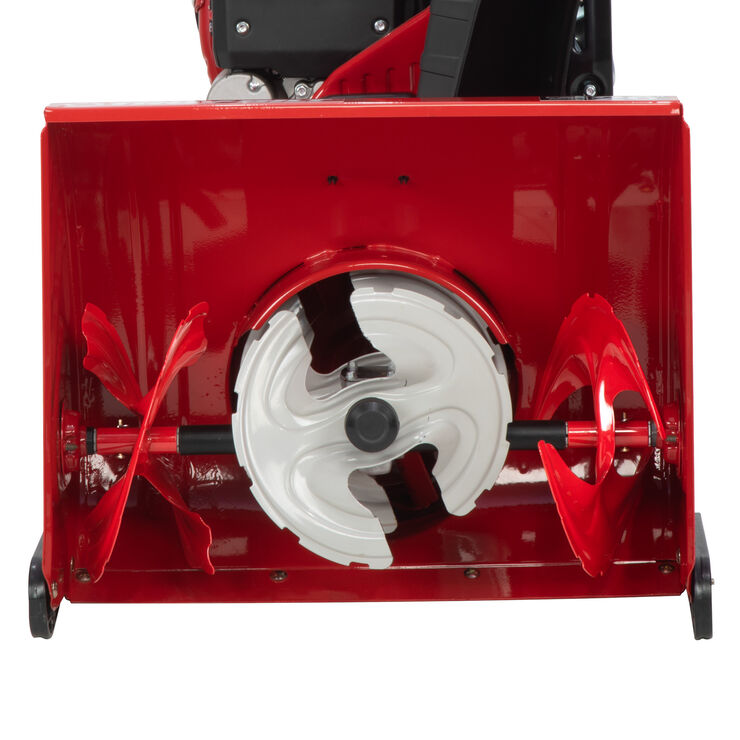

Three-stage technology on the Vortex 2610 includes a powerful 12" accelerator that spins 10 times faster than the augers to break down and quickly clear heavy, wet snow. Equipped with a 357cc Troy-Bilt engine, heated handgrips, Touch N’ Turn™ power steering, and an in-dash headlight, you'll be prepared to meet winter's toughest challenges. Featuring rugged, 12" serrated steel augers designed to handle up to 18" of snow, the center-mount chute crank puts the controls comfortably within your reach. Just One Hand™ operation allows adjustment of the chute controls without disengaging the drive, including a quick change to the snow discharge height from the dashboard with the remote pitch control lever. The extended chute is designed to minimize snow blowback on the operator.
Documents and Guides
- Three-stage design with durable, center-mounted steel accelerator spins 10X faster than the augers to break down and quickly clear heavy, wet snow

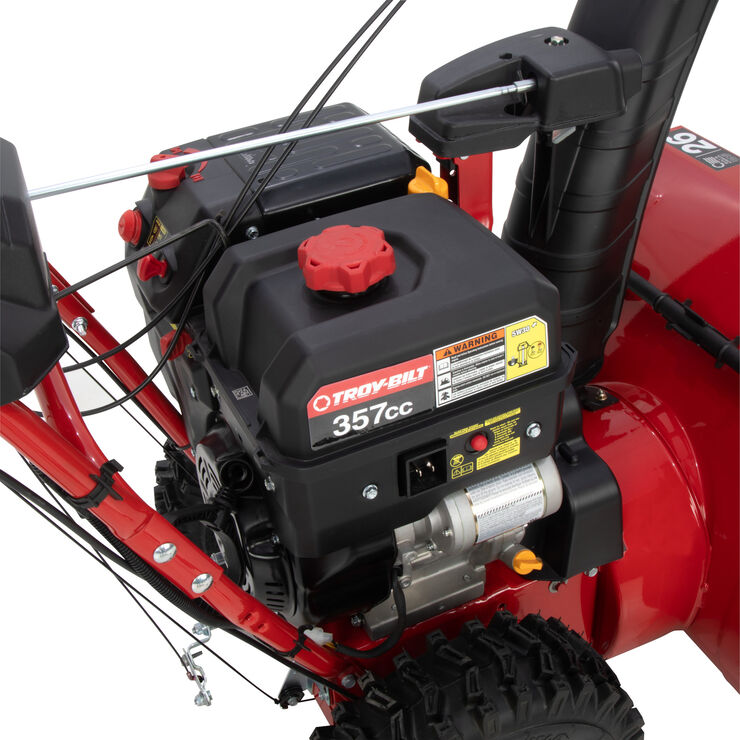

- Powered by a Troy-Bilt 357cc OHV engine equipped with push-button electric start and with a large 5qt. fuel tank for longer run times
- Heated hand grips provide extra comfort in cold weather
- Touch N’ Turn™ trigger-controlled power steering allows you to quickly adjust your direction with one finger
- In-dash LED headlight helps improve visibility in low-light conditions
Vortex 2610 Snow Blower Features
Troy-Bilt engines deliver reliable power and are tested to ensure dependable starting in all weather conditions.
Electric start allows you to start the machine with the push of the button, eliminating the need to pull-start a cold engine.

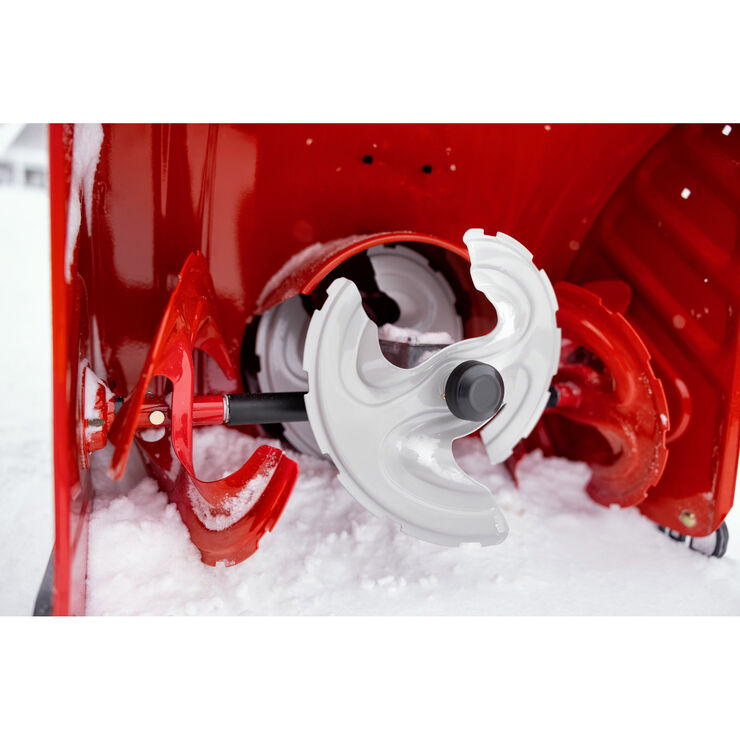

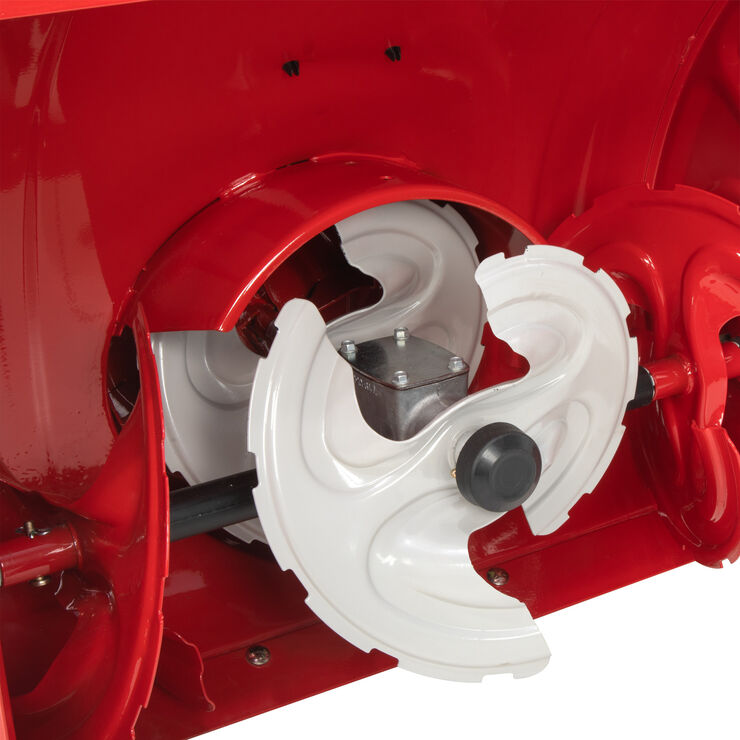

Three-stage design with durable, center-mounted steel accelerator spins 10X faster than the augers to break down and quickly clear heavy, wet snow.
Self-propelled drive with choice of six forward and two reverse speeds.
Touch N’ Turn™
Touch N’ Turn™ trigger-controlled power steering allows you to quickly adjust your direction with one finger.
Minimal Snow Blowback
Extended chute design minimizes blowback of snow discharge on the operator.
Just One Hand™ Operation
Just One Hand™ operation allows you to lock in your speed and adjust chute controls without disengaging the drive.
Wide-fit mitten grip makes pull-starting easier when wearing heavy gloves or mittens.

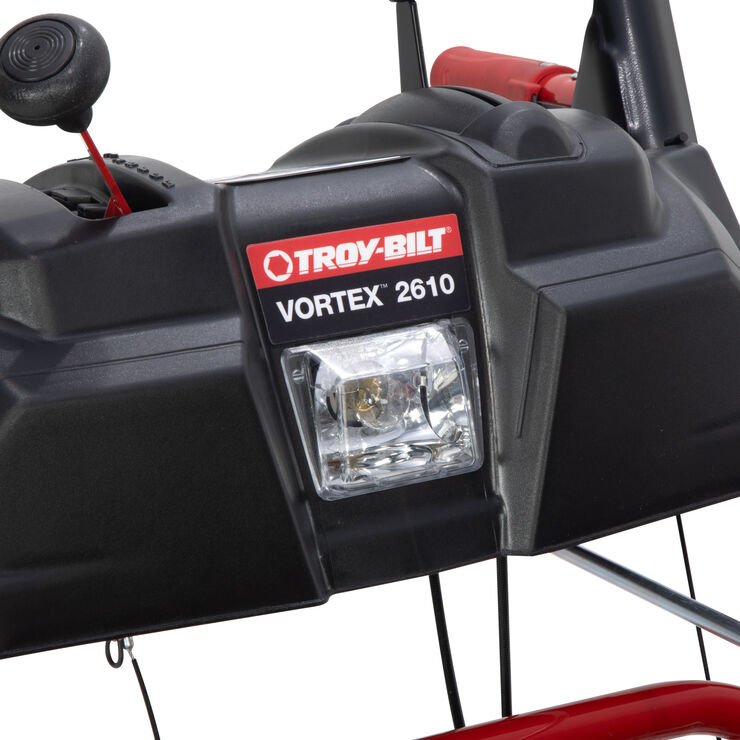

In-dash headlight provides improved visibility in low-light conditions.
Heated Hand Grips
Heated grips provide extra comfort in cold weather.
Backed with a 3-year limited warranty for peace of mind
Overhead Crank Chute Control
Overhead crank chute control allows you to easily adjust the direction of snow discharge from the operator area so it’s thrown where you want it.
Specs & Maintenance
- Engine Brand Troy-Bilt®
- Engine Model Number 683-WUB
- Engine Displacement 357cc
- Fuel Tank Capacity 5 quarts US / 4.7 L
- Engine Start Recoil and Push-Button Electric
- Number of Forward Speeds 6
- Number of Reverse Speeds 2
- Drive System All-wheel Drive
- Drive Type Friction Disc
- Tire Size 15" x 5"
- Tread X-TRAC™
- Warranty 3-year limited
- Auger Gearbox Warranty 3-year limited
- Commercial Warranty No
- Chute Warranty Lifetime limited
- Handle Grip(s) Heated Grips
- Pitch Control Remote Single-Lever
- Chute Rotation 200°
- Chute Control Overhead Crank
- Steering Control Touch N’ Turn™ trigger-controlled
- Operator Control Just One Hand®
Power and Performance
- Clearing Width 26"
- Intake Height 21"
- Number of Stages Three
- Auger Diameter 12''
- Impeller Diameter 12"
- Accelerator Diameter 12"
- Headlight(s) In-dash LED
- Shave Plate Steel

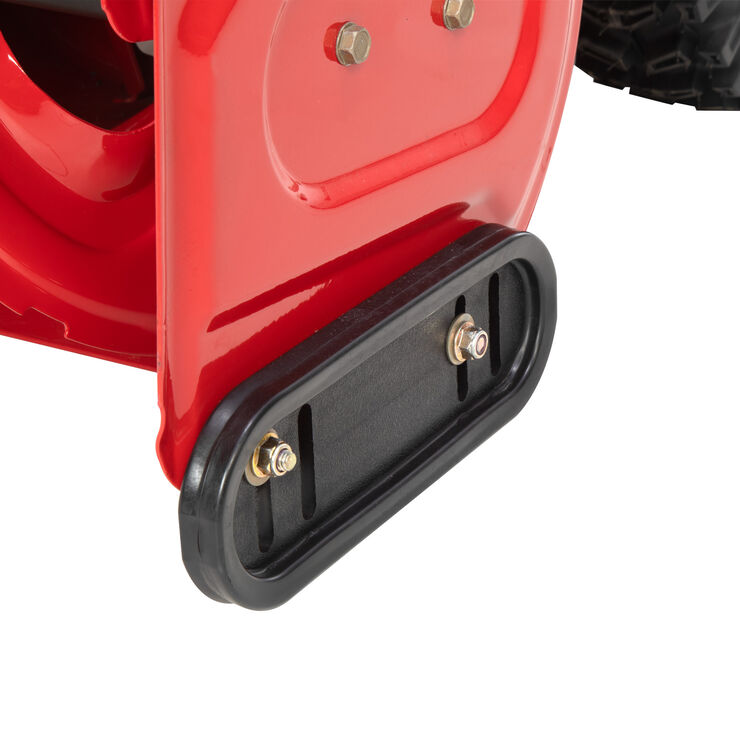

- Skid Shoes Deluxe Polymer
- Drift Cutters No
- Auger Material Serrated Steel
- Chute Material Polymer
- Chute Clearing Device Yes
- Model Number 31AH5DP7B66
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
