TBWC28 Self-Propelled Lawn Mower
Or
Interest will be charged from the purchase date if the purchase balance is not paid in full at the end of the promotional period. Advertised minimum payment is greater than required minimum payment.

- Troy-Bilt OHV engine with Autochoke makes starting simple and easy
- Built In America with U.S and Global Parts since 1937
- Cut larger areas faster with 28-in mowing deck
- 3-year limited warranty for extended peace of mind
- InStep™ variable speed lets you customize your speed and provides more control of the rear wheel drive transmission on all terrains and conditions
- Single lever height adjustment makes it easy to change cutting heights from 1.25-in to 3.75-in H
TBWC28 Self-Propelled Lawn Mower Features
Simple Starting

Troy-Bilt OHV engine with Autochoke makes starting simple and easy
Easy Clean Up

1.9 bushel rear bag collects grass clippings for easy clean up or composting.
Maintain a Healthy Lawn

Included mulch kit helps maintain a healthy lawn
Easy Maintenance

Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck

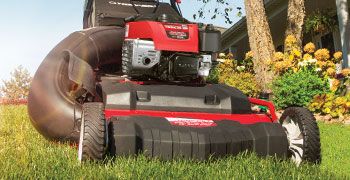

Cut Faster

Cut larger areas faster with 28-in mowing deck

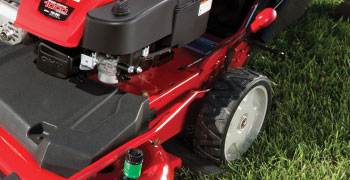

High Rear-Wheels

Pushes more easily over rough spots and up hills with 10-in high rear wheels
Pride

Headquarted in Valley City, OH, our reliable equipment is designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
3-Year Limited Warranty

XP™ Series 3-year limited warranty for extended peace of mind
Specs & Maintenance
Engine
- Engine Brand Troy-Bilt®
- Engine Model Number 5P71RU
- Engine Displacement 195cc
- Starter Type Recoil
- Fuel Tank Capacity 1.0 qt
- Engine Oil Capacity 20 oz
- Choke Autochoke
Drive System
- Drive System RWD
Cutting Deck
- Deck Cutting Width 28 in
- Deck Wash Yes
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Single-Lever
- Cutting System N/A
- Mulch Plug Integrated
- Discharge Location Side
Warranty
- Warranty 3-year limited
- Commercial Warranty No
Controls
- Handle Adjustable Loop
- Drive Controls Troy-Bilt IN-STEP
Wheels
- Tread Pattern S-Wave
- Front Wheels 8"
- Rear Wheels 10"
- Bearing Type Poly Bushing
Dimensions
- Weight (approx.) 160 lbs
Additional Specifications
- Model Number 12ABW32G766
Grass Collector
- Grass Bag Capacity 2 Bushel
- Bagger Type Dust Blocking
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
---|---|---|---|
12ABW32G766 | GDE:FAST START:12X-W32GXXX | ||
GDE:FAST START:12X-W32GXXX | 778-13650 | Download | |
MAN:OWN:COL3X_159CC_196CC_ENG | 769-15770B | Download | |
MAN:OWN:COL3X_159CC_196CC_ENG | 769-15770C | Download | |
MAN:OWN:DIGEST_159_196_224CC_E | 769-25350 | Download | |
MANL:OPER:BILING:12X:WXX | 769-11201B | Download | |
MANL:OPER:BILING:12X:WXX | 769-11201C | Download | |
MANL:OPER:BILING:12X:WXX:GENER | 769-11201 | Download | |
MANL:OPER:BILING:MTD:195cc ENG | 769-07811D | Download | |
MANL:OPER:BILING:MTD:195cc ENG | 769-07811E | Download | |
MANL:OPER:BILING:MTD:195cc ENG | 769-07811F | Download | |
MANL:OPER:FRENCH:12X:WXX | 769-11201C_FR | Download | |
SHEET:SUP:BILING:12X:WXX:TROY | 769-11202 | Download | |
SHEET:SUP:BILING:12X:WXX:TROY | 769-11202A | Download | |
SHEET:SUP:BILING:EPA:CARB:EVP: | 769-17170 | Download | |
SHEET:SUP:BILING:EPA:CARB:EVP: | 769-23591 | Download | |
SHEET:SUP:BILING:EPA:CARB:EVP: | 769-25880 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-17172 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-23593 | Download | |
SHEET:SUP:BILING:EPA:CARB:EXH: | 769-25882 | Download | |
SHEET:SUPP:BLADE:GEN | 769-11727 | Download |
