TB16R Reel Lawn Mower
The Troy-Bilt® TB16R reel mower is easy to use, with no rope pulling, no ignition key, and no gas to worry about. This reel mower is ideal for yards less than ¼ an acre and is equipped with 10" rear wheels designed for traction when navigating uneven terrain. The 5-blade system is engineered to deliver a quality cut with minimal ripping or tearing of grass and producing fine mulch for a healthy lawn.
Documents and Guides
- 16" cutting width is ideal for smaller yards of less than ¼ an acre.
- 5-blade design is engineered to finely mulch grass clippings and help add nutrients back into the soil to encourage a healthier lawn
- 9 position height adjustment makes it easy to change cutting heights from 0.75". to 2.5"
- 10" high rear wheels are designed to provide traction and make it easy to navigate uneven terrain
- Reel Lawn Mower
TB16R Reel Lawn Mower Features
Pushes more easily over rough spots and up hills with 10" high front wheels.
Easily Change Cutting Heights
9-position height adjustment makes it easy to change cutting height from .75" - 2.5".

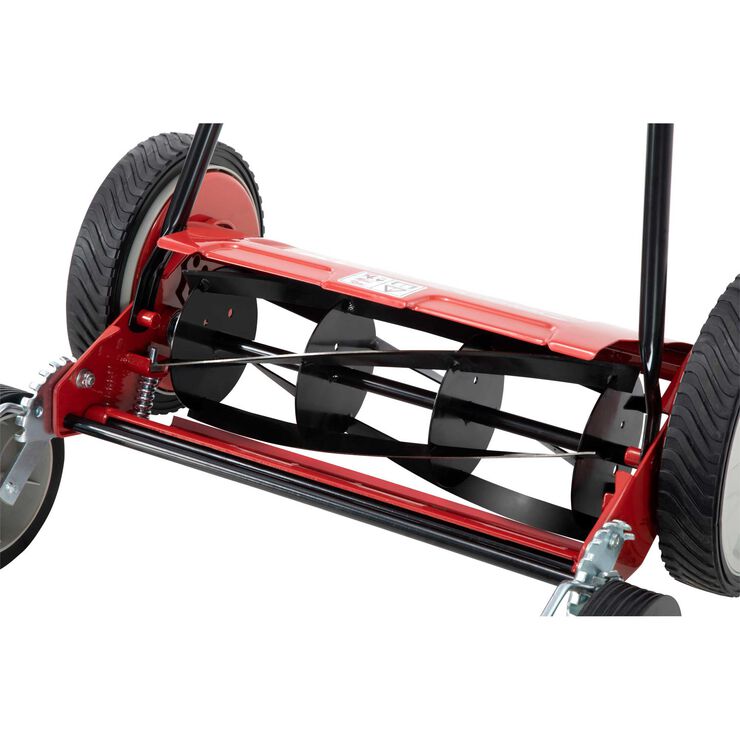

Steel cutting blades provide a quality cut with a fine mulch that resists clumping for a healthier lawn.
Backed with a 2-year limited warranty for peace of mind
Specs & Maintenance
- Engine Brand N/A
- Engine Model Number N/A
- Engine Displacement N/A
- Starter Type N/A
- Fuel Tank Capacity N/A
- Engine Oil Capacity N/A
- Drive System Push
- Deck Cutting Width 16 in
- Deck Wash No
- Deck Material Steel
- Cutting Height Range 0.75" - 2.50"
- Deck Positions 9
- Deck Height Adjustment Dual-Lever
- Cutting System N/A
- Mulch Plug N/A
- Discharge Location Rear
- Handle Ergo
- Drive Controls N/A
Power and Performance
- Starting System N/A
- Tread Pattern S-Wave
- Front Wheels 10 in
- Rear Wheels 6 in
- Bearing Type Poly Bushing
- Model Number 15A-3000B66
- Warranty 2-year limited
- Commercial Warranty No
- Grass Bag Capacity N/A
- Bagger Type N/A
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
The Operator's Manual is an important part of your new outdoor power equipment. It will help you assemble, prepare, maintain and safely operate your machine. Your outdoor power equipment was built to be operated according to the rules and instructions for safe operation which are contained in the operator's manual and on the machine itself.
Safety rules and instructions, if not followed, could endanger the personal safety and/or property of the operator and others. Read and follow all instructions in the manual before attempting to operate your outdoor power equipment. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. Your machine is capable of amputating hands and feet and throwing objects. Failure to observe the safety rules and instructions, both on the machine and in the Operator's Manual, could result in serious injury or death.
Important: Troy-Bilt, its parents, affiliates and subsidiaries, is concerned about the safety of its customers and others. Due to the size of the Operator's Manual, some Operator's Manuals are broken down into two or more segments so that the entire Operator's Manual can be downloaded easily. Troy-Bilt is requiring all those who wish to download a copy of the Operator's Manual to acknowledge that he/she will download the portion of the Operator's Manual that contains the Important Safe Operation Practices section, as stated below. This is to ensure that this section is reviewed and accessible when operating, servicing and/or maintaining the machine.
NOTICE: BY CONTINUING I AFFIRM THAT I WILL DOWNLOAD THAT PORTION OF THE OPERATOR'S MANUAL WHICH CONTAINS SECTION 1: IMPORTANT SAFE OPERATION PRACTICES, AND THAT I WILL READ AND FOLLOW THE SAFETY RULES AND INSTRUCTIONS PROVIDED.
By clicking "I AGREE" below, you certify that you have read and accepted the above notice.
