TB105B Push Lawn Mower
Interest will be charged from the purchase date if the purchase balance is not paid in full at the end of the promotional period. Advertised minimum payment is greater than required minimum payment.

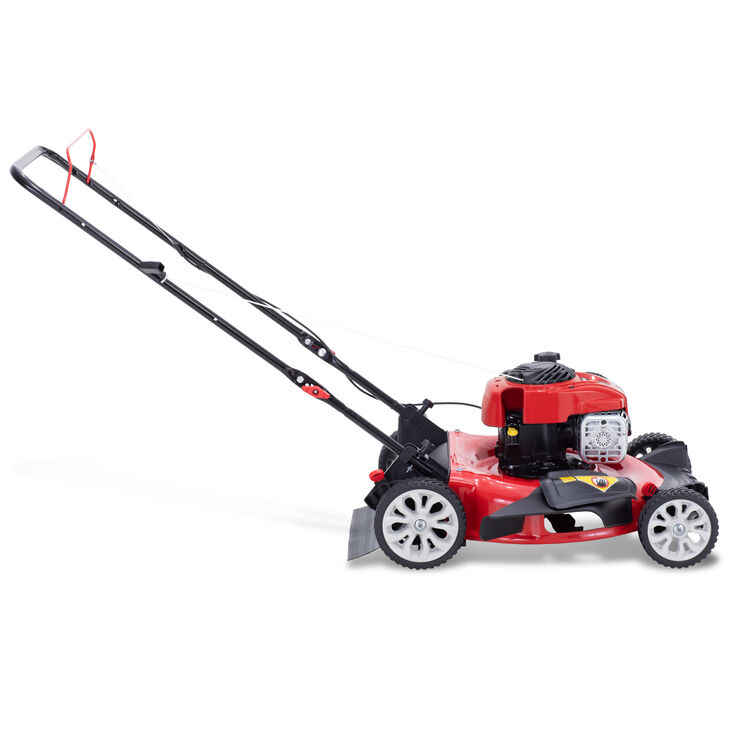

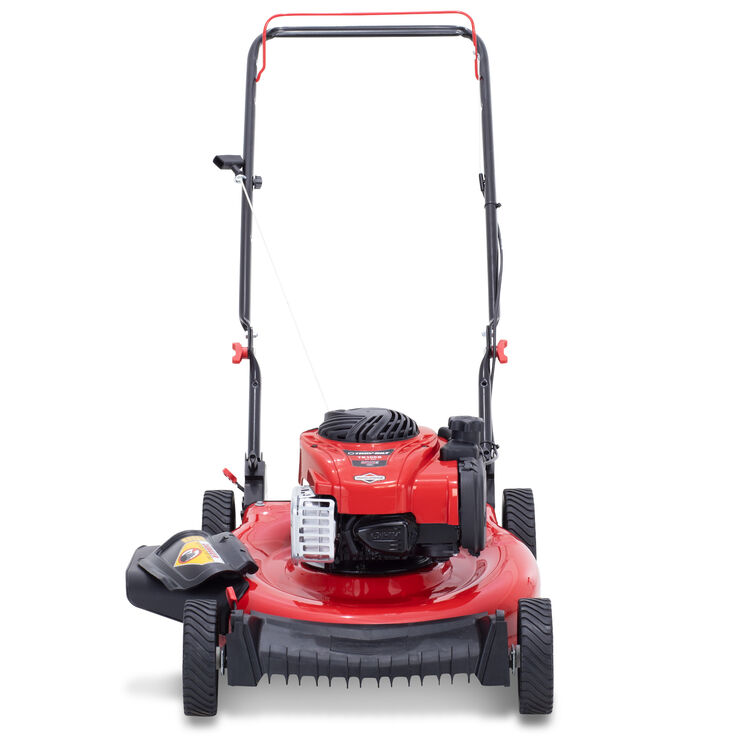

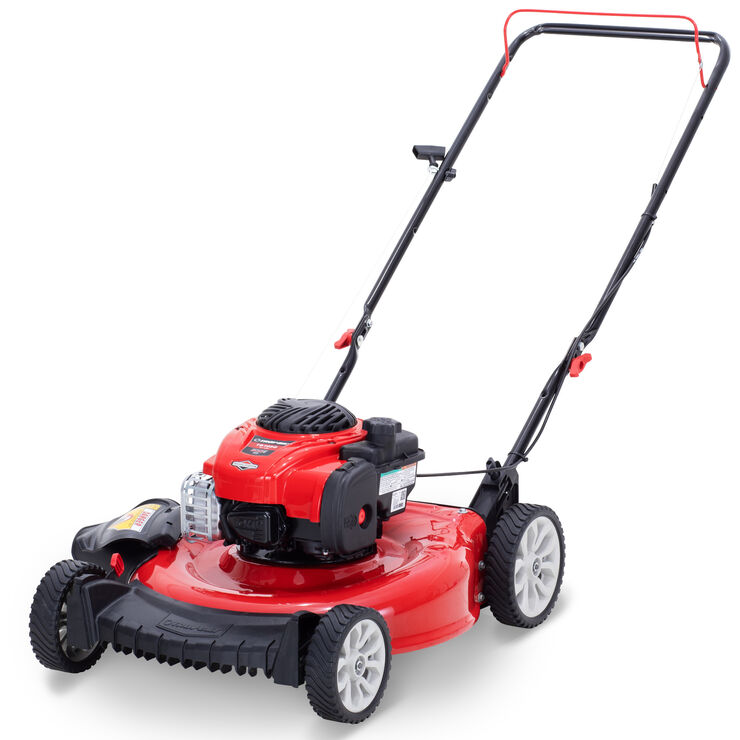

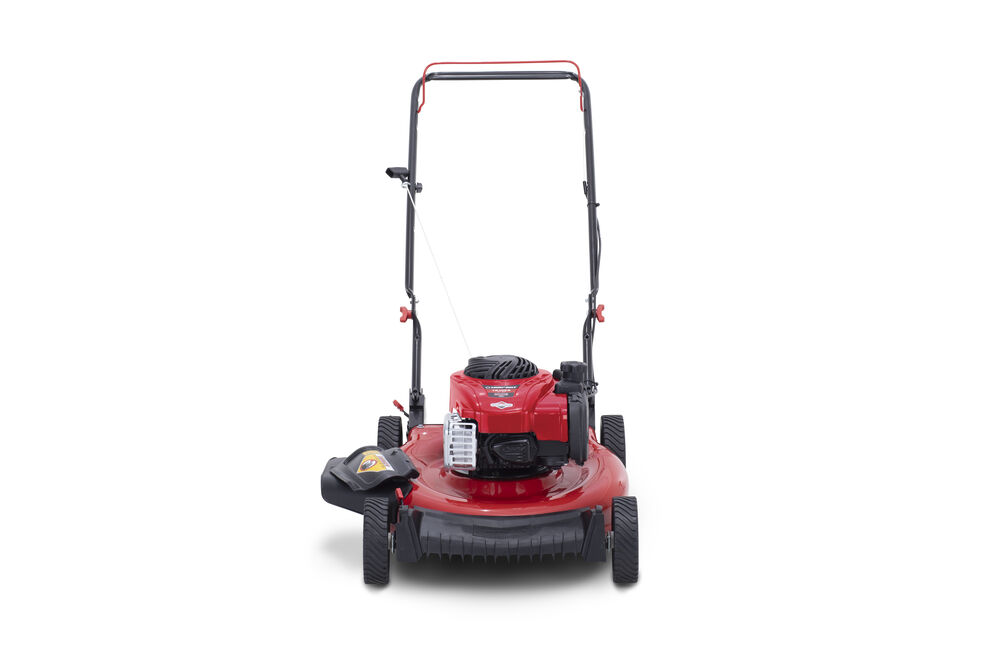

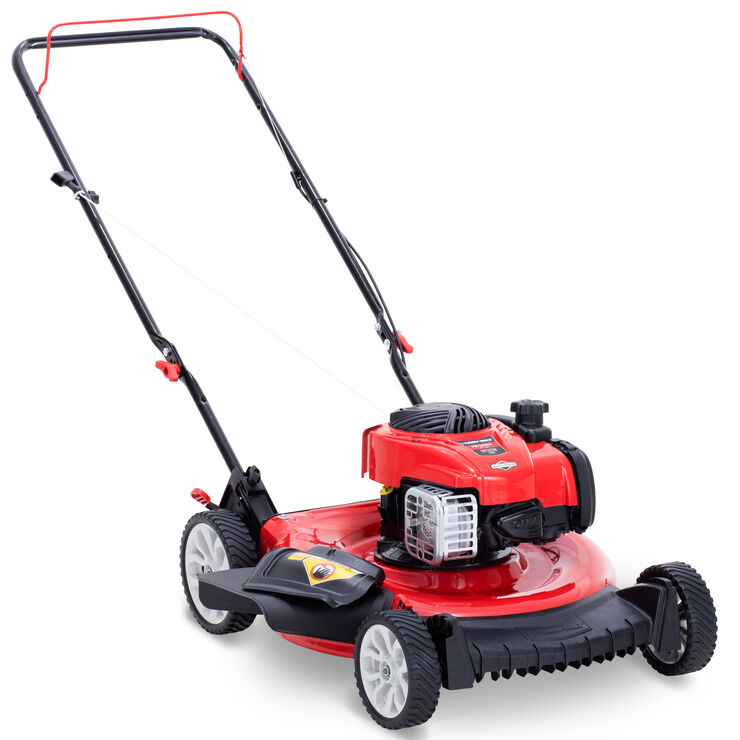

The Troy-Bilt® TB105B push mower is designed with a 21" steel deck for durability and comes with a mulch kit engineered to finely mulch grass clippings and help add nutrients back into the soil. Featuring a dependable 140cc Briggs & Stratton® engine that delivers reliable power to get the job done right and is equipped with Prime 'N Pull™ technology for easy starting. Dual-lever, 6-position height adjustment makes it easy to change cutting heights from 1.25" to 3.75 "
Documents and Guides
- 140cc Briggs & Stratton engine with Prime N Pull™ starting system is engineered for reliable, easy starting
- Included mulch kit helps maintain a healthy lawn.
- 21"steel deck features the TriAction® cutting system designed to deliver a well-groomed look to your lawn.
- Dual-lever, 6-position height adjustment makes it easy to change cutting heights from 1.25" to 3.75 "
TB105B Push Lawn Mower Features
Easy Starting

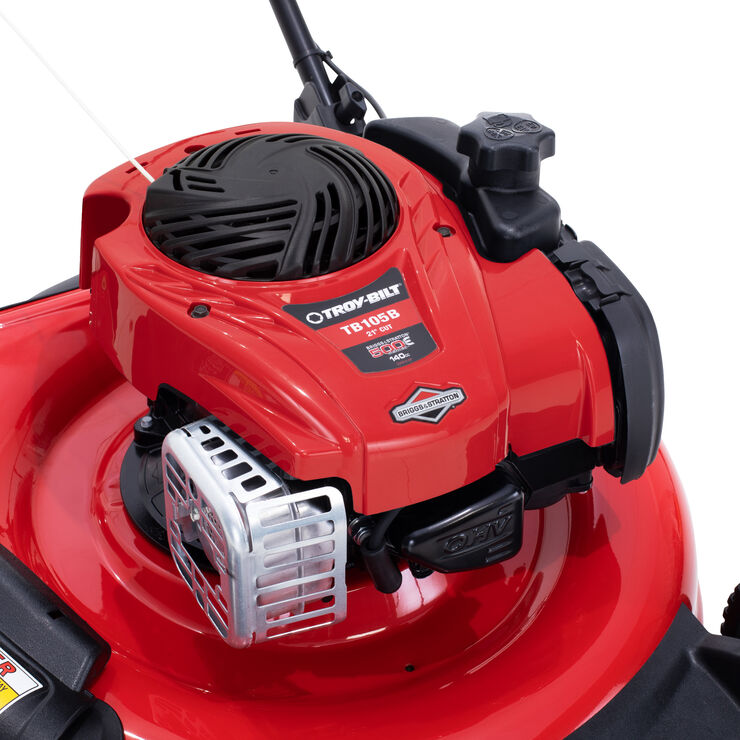

Briggs & Stratton engine with Prime N Pull starting system for reliable, easy starting.
TriAction Cutting System
TriAction cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Easily Change Cutting Heights
9-position height adjustment makes it easy to change cutting heights from .75" - 2.5".
Integrated Mulching Kit
Included mulch kit helps maintain a healthy lawn
Confidence
Backed with a 2-year limited warranty for peace of mind
Pride
Headquartered in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— with U.S. and global parts — from Ohio and Mississippi to Tennessee and Arizona.
Specs & Maintenance
Engine
- Engine Brand Briggs & StrattonĀ®
- Engine Model 550e
- Engine Model Number 09P702-0278
- Engine Displacement 140cc
- Starter Type Recoil
- Fuel Tank Capacity 0.8 qt
- Engine Oil Capacity 15 oz
- Choke Primer
Drive System
- Drive System Push
Cutting Deck
- Deck Cutting Width 21 in
- Deck Wash No
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System Tri-Action
- Mulch Plug Integrated
- Discharge Location Side
Controls
- Handle Adjustable Loop
- Drive Controls N/A
Wheels
- Tread Pattern S-Wave
- Front Wheels 7 in
- Rear Wheels 8 in
- Bearing Type Poly Bushing
Specifications
- Engine Starter Type Recoil
Additional Specifications
- Model Number 11A-A0BP766
Warranty
- Residential Warranty 2-year limited
- Commercial Warranty No
Blade Specifications
- Deck Cutting Width 21 in
Grass Collector
- Grass Bag Capacity N/A
- Bagger Type N/A
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
