Mustang Z54 Zero-Turn Mower
Item#:
17ARFACWA66
2025
price.from
$3,699.00
price.msrp
2025
Mustang Z54 Zero-Turn Mower
Item#:
17ARFACWA66
price.from
$3,699.00
price.msrp

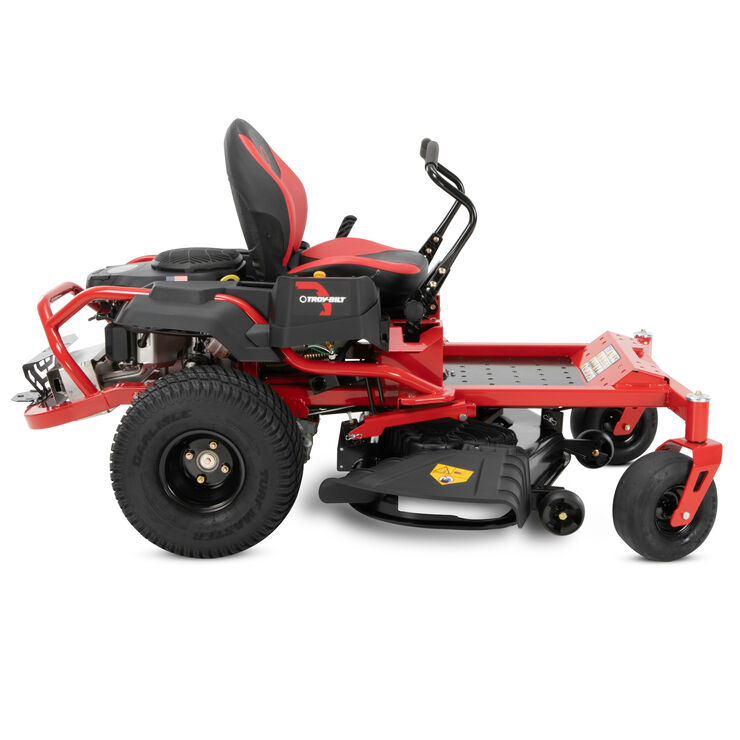

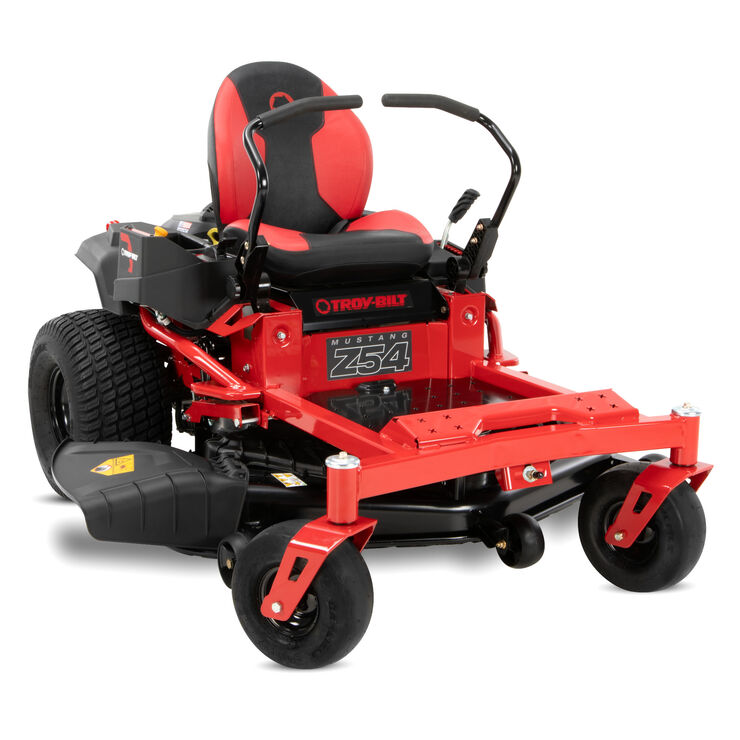

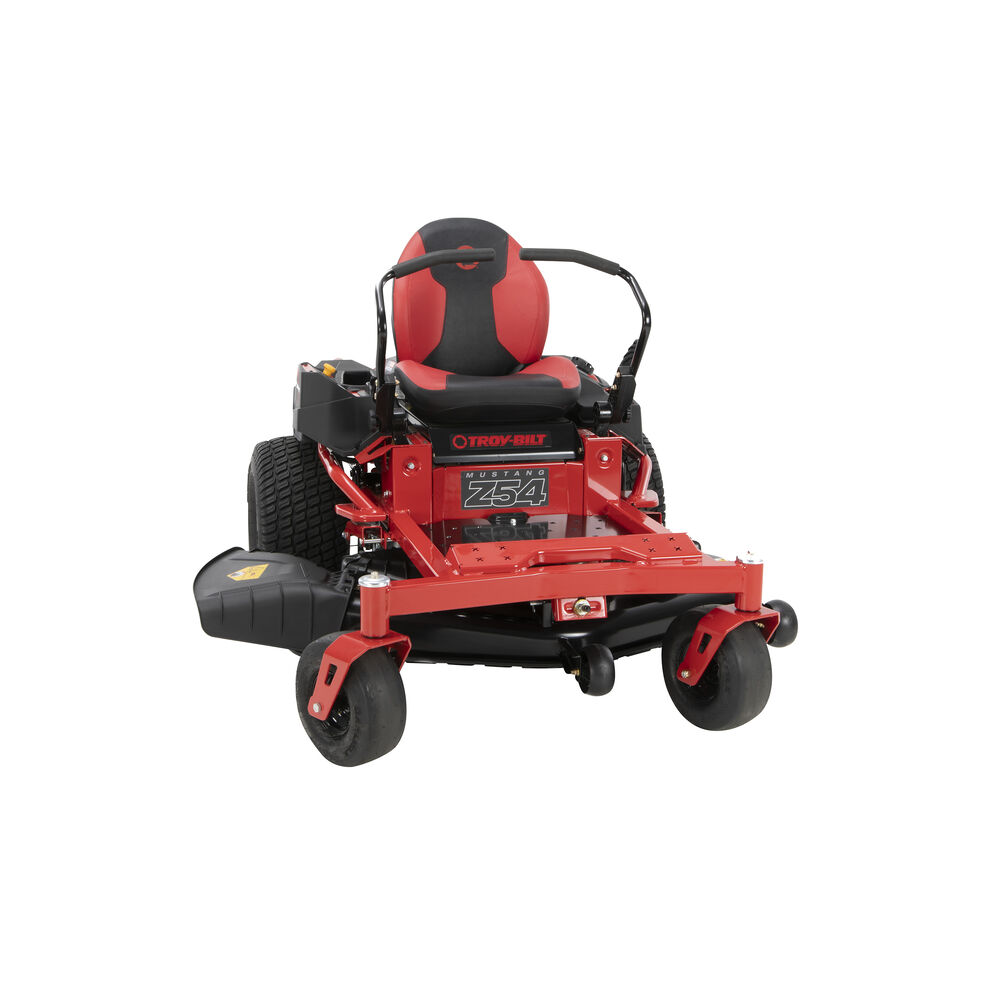

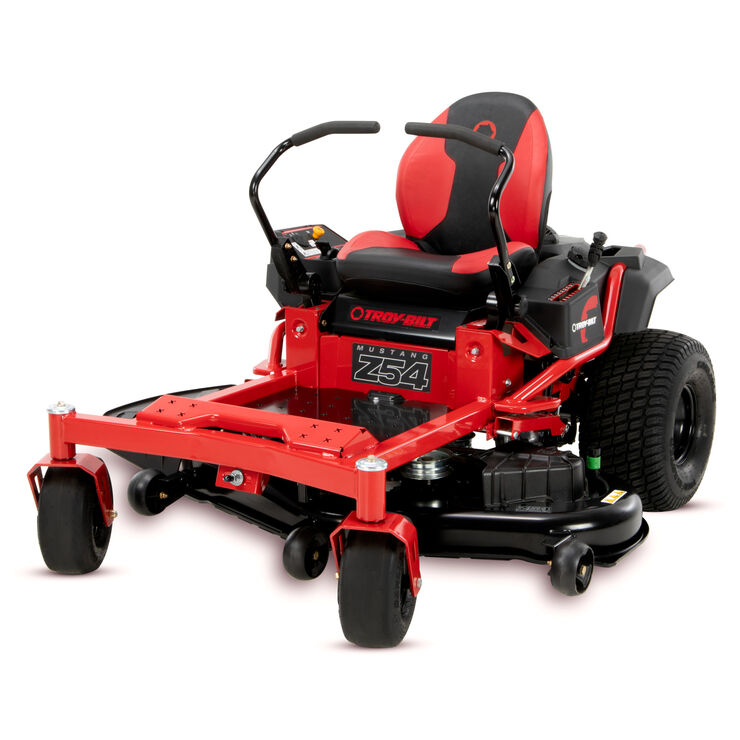

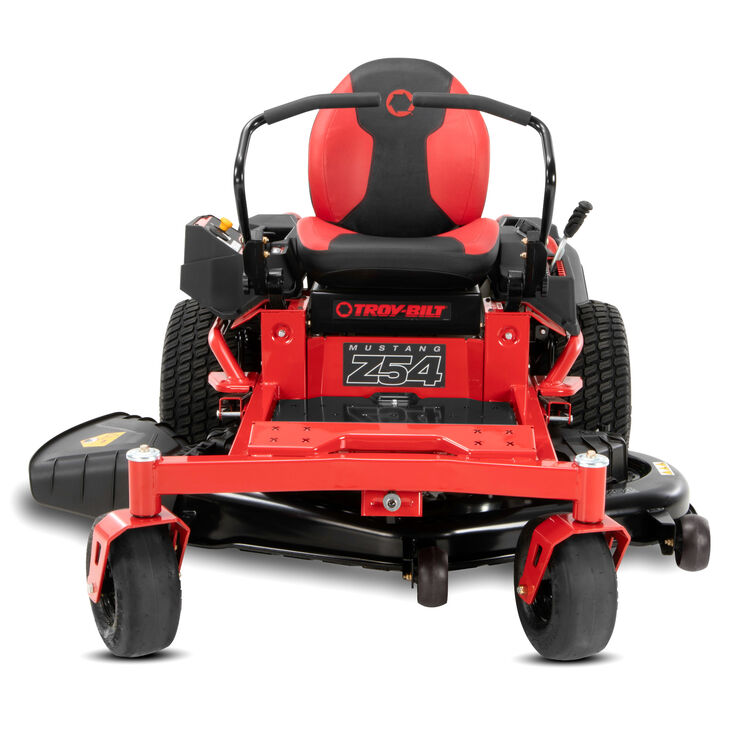

Tackle large yards easily with the 54" deck on the Troy-Bilt® Mustang™ Z54 that includes two front deck wheels and a nose roller to help provide a smooth ride. The dual hydrostatic transmissions are designed to quickly turn at the end of a row and mow around trees and landscape beds. The rugged steel frame is engineered to absorb impact, provide stability, and is covered by a limited lifetime warranty. Ride comfortably with the adjustable high-back seat and foam grip steering controls.
- Powerful 24 HP*/747cc twin-cylinder KOHLER engine delivers quiet, balanced performance
- Full-length, fully welded, 2 " tubular steel frame is designed to absorb impact, provide stability and is covered by a limited lifetime warranty
- 54" triple blade cutting deck with two anti-scalp deck wheels and nose roller help prevent turf damage and is engineered to deliver a clean, even cut.
- Dual hydrostatic transmissions with lap bar control deliver true zero-turn performance and are designed to help quickly cut and maneuver around obstacles while mowing.
- Adjustable, 18" high-back seat and foam-grip steering controls help provide a comfortable ride
- Zero-Turn Mower
- 3 gauge wheels
- 11-guage steel
- Foot pedal
- Electric
- Available separately
- 210 CCA
- No
- No
- Yes
You May Also Like
![SEAT-18" 4 PT MTG TROY](https://www.troybilt.com/dw/image/v2/BCSH_PRD/on/demandware.static/-/Sites-mtd-master-catalog/default/dwa24d8b05/products/757-05887_5.jpg?sw=280&sh=280&sm=fit "SEAT-18" 4 PT MTG TROY")
Mustang Z54 Zero-Turn Mower Features

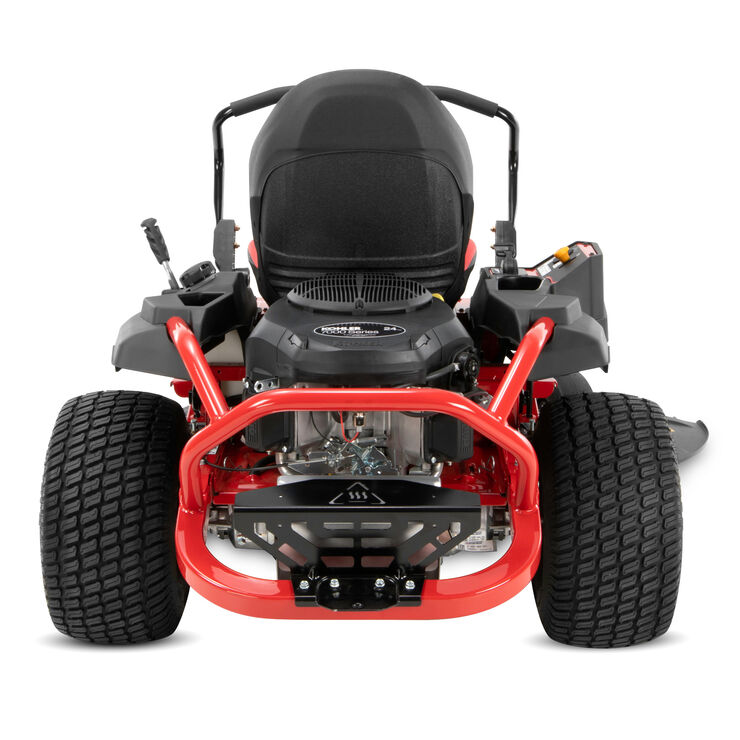

Heavy-Duty Frame
Heavy-duty 2" tubular frame absorbs impact, provides maximum stability and is covered by a limited lifetime warranty.

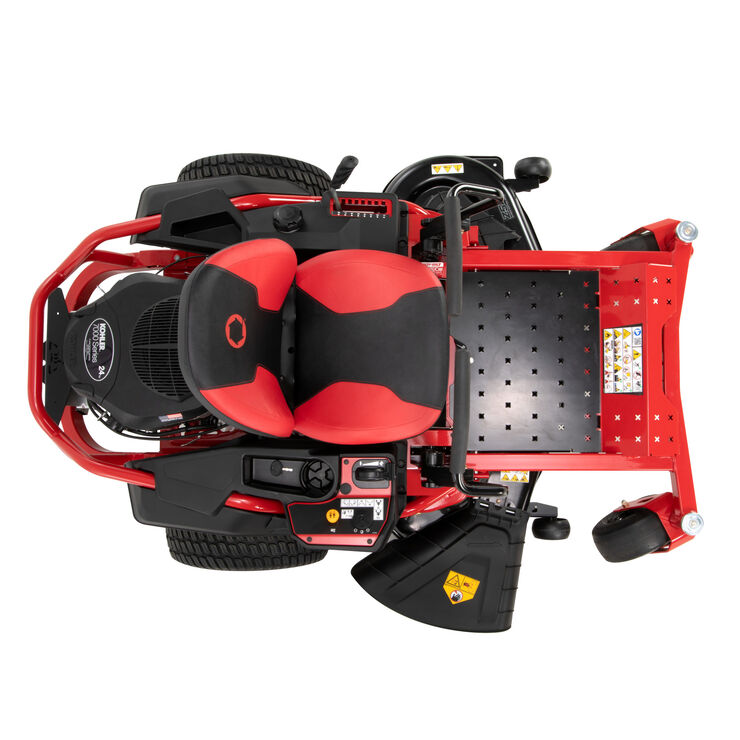

Increased Comfort
Ride in more comfort and with reduced vibration thanks to the high-back seat and foam grip steering controls.
Easy Blade Engagement
Quickly engage the cutting deck with conveniently located, console-mounted knob.
Safety First
Lap bar controls have an integrated parking brake to safely and quickly stop the mower.
Deck Wash
Attach a standard garden hose to the deck wash port to quickly clean underside of deck and prevent buildup of clippings
Quickly Adjust Cutting Height
8-position height adjustment on the fender makes it easy to change cutting heights from 1.5" - 4"
Reduced Turf Damage
Anti-scalp deck wheels and Turf Master tires keep your lawn looking beautiful.
Easier Clean-Up

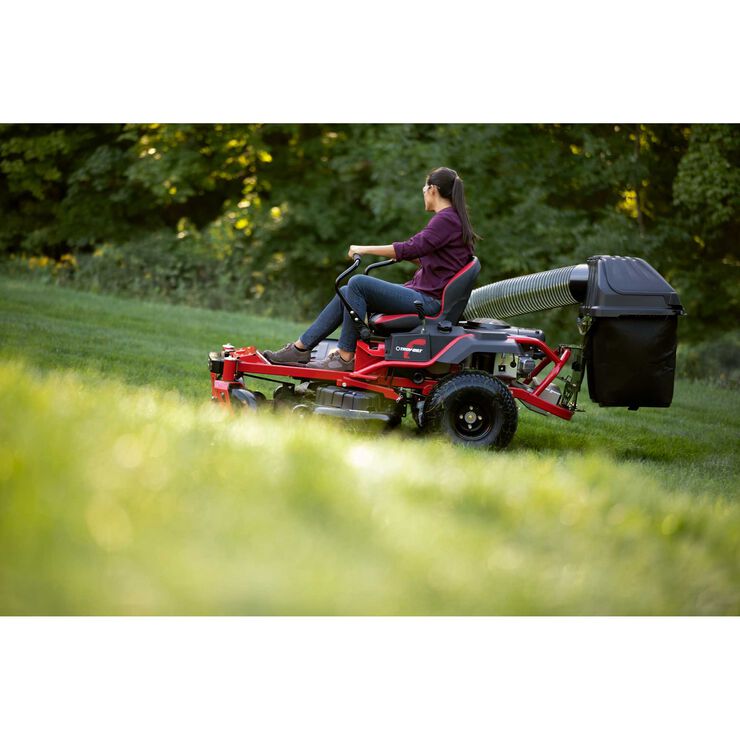

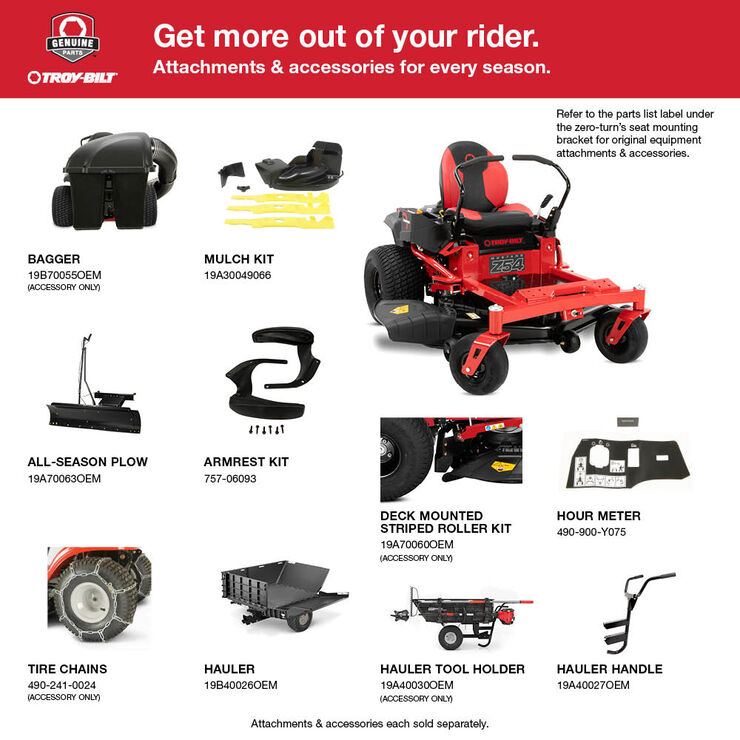

Make yard clean up easier by using an available rear bagger to collect grass clippings and leaves for composting or disposal.
Versatile Performance
Convenient rear hitch makes attaching available tow-behind attachments, like dump carts, spreaders or aereators, easy and quick.

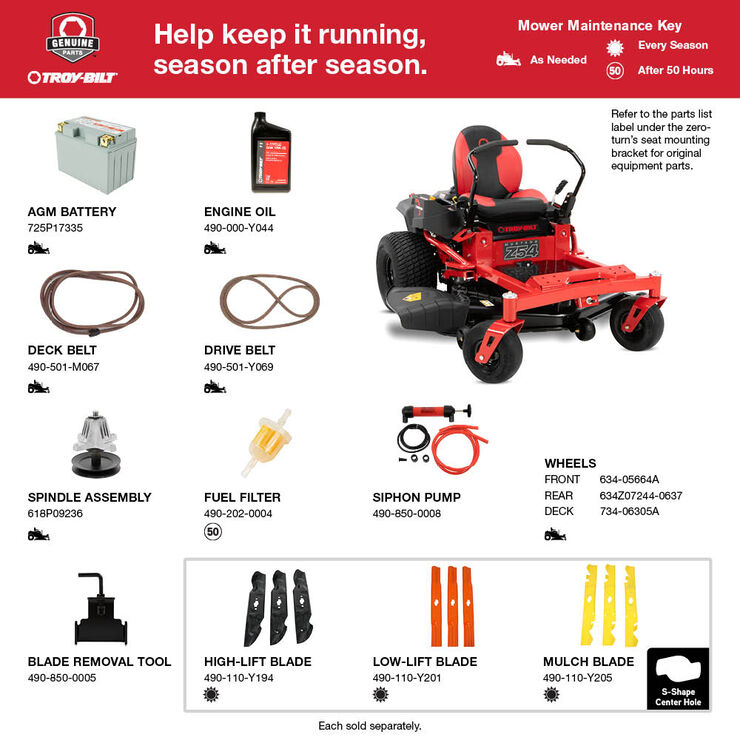

Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series
- Engine Model Number KT724
- Engine Displacement 747cc
- Engine Output 24HP
- Starter Type Electric
- Fuel Tank Capacity 3.5 gal. US (13.25 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Cutting Deck
- Deck Cutting Width 54 in
- Deck Wash Yes
- Deck Material 11-guage steel
- Deck Engagement (PTO) Electric
- Deck Construction Stamped
- Blade(s) 3
- Deck Lift Foot pedal
- Cutting Height Range 1'' - 4.5''
- Anti-Scalping 3 gauge wheels
- Deck Positions 8
Chassis
- Frame 2'' x 2'' tubular steel
- Turning Radius 0°
- ROPS No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
Controls
- Cruise Control No
- Brakes Disc
- Steering Control Lap Bars
Wheels
- Rear Tires 20''x 10''- 8''
- Front Tires 11"x 6"-5"
- Tire Tread Turf Master / Multi Trac
Additional Specifications
- Hour Meter Available separately
- Mulch Kit Available separately
- Headlight(s) No
- Cup Holder Yes
- Operator Presence System Yes
- Parking Brake Lap Bar Integrated
- Model Number 17ARFACWA66
Warranty
- Residential Warranty 3-year limited
- Frame Warranty Lifetime limited
- Deck Shell Warranty 3-year limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Horsepower *As rated by engine manufacturer
Model | Manual | Form Number | |
|---|---|---|---|
| 17ARFACWA66 | MANL:OPER:TRILING:RZ19:DIGEST | ||
| MANL:OPER:TRILING:RZ19:DIGEST | 769-25609B | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-25609C | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26504 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26504A | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-26861 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-27000 | Download | |
| MANL:OPER:TRILING:RZ19:DIGEST | 769-27000A | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26345 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26642 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26642A | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26890 | Download | |
| SHEET:SUPP:WARR/PARTS:TB RZ19 | 769-26890A | Download |
