TB290 ES Self-Propelled Lawn Mower
Interest will be charged from the purchase date if the purchase balance is not paid in full at the end of the promotional period. Advertised minimum payment is greater than required minimum payment.
- Starting is easy with push-button electric start
- Built In America with U.S and Global Parts since 1937
- XP™ Series 3-year limited warranty for extended peace of mind
- Get improved control and faster turns with variable speed front wheel drive
- Troy-Bilt Check, Don't Change(TM) engine eliminates the need to change oil by simply checking before each use and topping off as needed
- Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck
TB290 ES Self-Propelled Lawn Mower Features
Check, Don't Change(TM)
Troy-Bilt Check, Don't Change(TM) engine eliminates the need to change oil by simply checking before each use and topping off as needed.
TriAction® Cutting System
TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Easy Clean Up
1.9 bushel rear bag collects grass clippings for easy clean up or composting.
Maintain a Healthy Lawn
Included mulch kit helps maintain a healthy lawn
Easily Change Cutting Heights
Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in. H
Deck wash adaptor makes maintenance easier by simply connecting a standard garden hose to rinse clippings from underside of deck

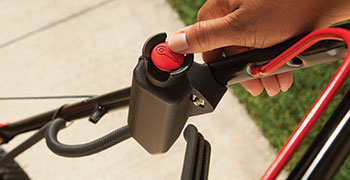

Starting made easy
Starting is easy with push-button electric start
Headquarted in Valley CIty Ohio, our reliable equipment is designed, built and tested right here in the U.S. – from Ohio and Mississippi to Tennessee and Arizona.
Specs & Maintenance
- Engine Brand Troy-Bilt®
- Engine Model 159 Series OHV
- Engine Displacement 159cc
- Starter Type Standard electric start
- Fuel Tank Capacity 1 qt.
- Engine Start Push Button Electric Start
- Engine Oil Capacity 20oz 10W30 (included)
- Speed Single Lever w/ variable 4-speed
- Drive System Front wheel self-propelled
- Deck Cutting Width 21"
- Deck Lift Dual-lever deck height adjustment
- Cutting Height Range 6 settings total from 1.25" to 3.75"
- Handle Adjustable Loop w/indent
- Front Wheels 8"
- Rear Wheels 8"
- Dimensions L/W/H 36.5" (L) x 24"(W) x 17.5"(H)
- Weight (approx.) 90 lbs
- Discharge Location 3-in-1, side discharge, mulch or rear bag
- Grass Bag Capacity 1.9 bushel
- Model Number 12AGA2MT766
- Warranty 2-year limited, SureStart
