TB200 Self-Propelled Lawn Mower
Item#:
12A-A1BP723
$319.00
TB200 Self-Propelled Lawn Mower
Item#:
12A-A1BP723
$319.00
Or
$54/mo No interest if paid in full within 6 months1
Interest will be charged from the purchase date if the purchase balance is not paid in full at the end of the promotional period or if you make late payments. Advertised minimum payment is greater than required minimum payment.
Reduce mowing effort and time with the front wheel drive control of the TB200. Starting is easy and dependable with Prime N Pull™ Briggs & Stratton engine and you'll have a clean, even cut every time with TriAction™ cutting system.
Documents and Guides
- Briggs and Stratton engine with Prime N Pull™ E-Z starting system for reliable, easy starting
- Built In America with U.S and Global Parts since 1937
- Single speed front wheel drive maneuvers easily and with less effort
- TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
- 1.9 bushel rear bag collects grass clippings for easy clean up or composting
- Included mulch kit helps maintain a healthy lawn
Attachments & Accessories
TB200 Self-Propelled Lawn Mower Features

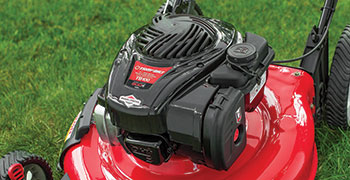

Easy Starting
Briggs and Stratton engine with Prime N Pull™ E-Z starting system for reliable, easy starting
TriAction® Cutting System
TriAction® cutting system delivers a well-groomed look to your lawn. The rake bumper, specialized blade and symmetrical deck work together to create finely mulched clippings and a clean, even cut every time.
Maintain a Healthy Lawn
Included mulch kit helps maintain a healthy lawn
Easily Change Cutting Heights
Dual-lever, 6 position height adjustment makes it easy to change cutting heights from 1.25 in. to 3.75 in. H
Pride
Headquarted in Valley City, OH, our reliable equipment is designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
Confidence
Backed with a 2-year limited warranty for peace of mind
Specs & Maintenance
Engine
- Engine Brand Briggs & Stratton
- Engine Model Number 09P702-0278
- Engine Displacement 140cc
- Starter Type Recoil
- Fuel Tank Capacity 0.8 qt
- Engine Oil Capacity 15 oz
- Choke Primer
Drive System
- Drive System FWD
Cutting Deck
- Deck Cutting Width 21 in
- Deck Wash No
- Deck Material Steel
- Cutting Height Range 1.25" - 3.75"
- Deck Positions 6
- Deck Height Adjustment Dual-Lever
- Cutting System N/A
- Mulch Plug Integrated
- Discharge Location None
Warranty
- Warranty 2-year limited
- Commercial Warranty No
Controls
- Handle Adjustable Loop
- Drive Controls Single Bail
Wheels
- Tread Pattern S-Wave
- Front Wheels 8"
- Rear Wheels 8"
- Bearing Type Poly Bushing
Dimensions
- Weight (approx.) 70 lbs
Additional Specifications
- Model Number 12A-A1BP723
Grass Collector
- Grass Bag Capacity 1.9 Bushel
- Bagger Type Dust Blocking
Disclaimer
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
Model | Manual | Form Number | |
|---|---|---|---|
| 12AA1BP723 | MANL:OPER:BILING:12X:21in GEN: | ||
| MANL:OPER:BILING:12X:21in GEN: | 769-22911 | Download | |
| MANL:OPER:BILING:12X:FWD:CONSO | 769-17390 | Download | |
| MANL:OPER:FRENCH:12X:FWD:CONSO | 769-17390_FR | Download | |
| SHEET:SUP:BILING:11X:12XTROY | 769-23230 | Download | |
| SHEET:SUP:BILING:12X:FWD:TROY_ | 769-17733 | Download | |
| SHEET:SUP:BILING:21IN:11X:12X: | 769-23231 | Download | |
| SHEET:SUP:FRENCH:11X:12XTROY | 769-23230_FR | Download | |
| SHEET:SUP:FRENCH:12X:FWD:TROY | 769-17733_FR | Download |
Product Reviews
Rated 1 out of
5
by
Andy G from
Worked fine for a while
Purchased this mower in the Spring of 2019. It worked fine for a couple of months, then it would start up fine, but after about 10 minutes of mowing it would die and then not start. Took it to authorized service center (Milbradt Eqpmt, St. Louis MO) They had it almost 3 weeks and when I got it back I had the same problem. I took it back to them 10 days ago, and have not heard anything yet. I am guessing this will be a simple fix covered under warranty, but until I receive the mower and use it for more than a season, I would be reluctant to recommend it. Mine is model number 1A-B2BM766
Date published: 2019-10-10
Rated 1 out of
5
by
Doug from
Engine Burns Oil
I bought this mower at the end of the summer in 2018, but didn't use it until spring 2019. The first several mows were fine and everything worked as it should. Then one day I noticed a loud rattling sound coming from the engine, so I shut it off and took the mower in the garage to investigate. It turns out that every drop of oil was burned up and I threw the rod bearing which trashed the motor. After four months of use I now need another mower.
Date published: 2019-12-26
Rated 1 out of
5
by
Anonymous from
Gold Standard of how NOT to build a mower
Bought this mower last season and already have it up for sale, something which I'm not too proud of. The last thing I want to do is inflict a Troy on another person, but I need to recoup my money somehow.
This mower sets the bar of poor design, cheap manufacturing, and short lifespan. In less than a year I've had to disassemble this hunk of junk to clean the carbs just to keep the mower running through a single mow mession. My yard is about the size of a side of mashed poatoes but this mower struggles mightily to complete a single pass without dying, getting clogged up (even in the dryest of grass), or just failing because that's what it's used to. At this point I would trust a herd of goats to mow my grass before anything Troy made.
Date published: 2021-06-07
Rated 1 out of
5
by
nancee from
Brand New Mower won't start!
I just purchased this mower and received it last Friday.. I took it out of the box, set it up, put the oil in and filled it with regular/premium gas.. I read the instructions - primed it 3 times and the fly wheel won't budge; then I saw that the gas, when I primed it, was running out of the bottom - through the sponge/cover.. I have had this almost exact mower for 15 years and it has been a great one - never had one problem with the engine - have had belts replaced and front drive wheels, which had no remaining tread. I was excited to use this brand new mower and am sad/angry that it would not start for me; I'm thinking that the gas is not getting where it is supposed to go when primed, as it is dripping out on the ground. I am so very disappointed - and am a 'seasoned senior' widow with no one to help me.
Date published: 2021-05-31
Rated 1 out of
5
by
mcgru from
Not buying again! Very disappointed
Bought this mower back in 2018 has been a great mower. Used only NON ETHANOL fuel and checked oil level before each cut. Was time to cut yard pulled out of the shed did normal checks topped off fuel and guess what wouldn't start. Spark plug was good but seemed very easy to pull. come to find out since its 6 months past manufactures warranty. piston ring broke. no previous indication of anything wrong. Very disappointed in the longevity of this mower. have had several others in the past and have been great. bought this one for the self propelled so gave troy bilt a try. Will never again
Date published: 2020-09-24
Rated 1 out of
5
by
Junk from
Junk
After a year it doesn’t start plastic carburetor is garbage ...
Date published: 2021-04-01
Rated 1 out of
5
by
eudyfive from
Poorly Engineered
I purchased this mower at the beginning of the season, but I won't be finishing the season with it. The engine is good and starts every time. The grass catcher is poorly constructed, and the opening for the grass to exit is too small. It vibrates more and harder than any mower I've ever owned. This machine needs to go back to the drawing board.
Date published: 2020-08-15
Rated 1 out of
5
by
Urbansmall yard from
Leaking Oil through the air filter
Got this a a gift for X-mas about a year ago. Just notice oil leaking from/through the ail filter compartment. Has not been turn on its side or nothing to cause the oil to shift within the motor. Small yard, normally takes 15-20 minutes to cut yard including emptying the bag 3 times in between fills.
Date published: 2020-06-05
