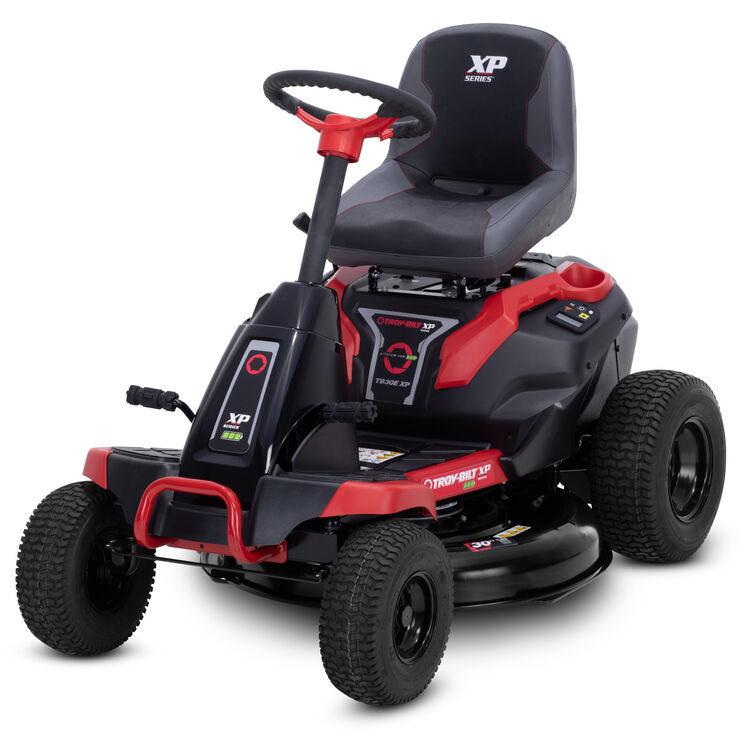

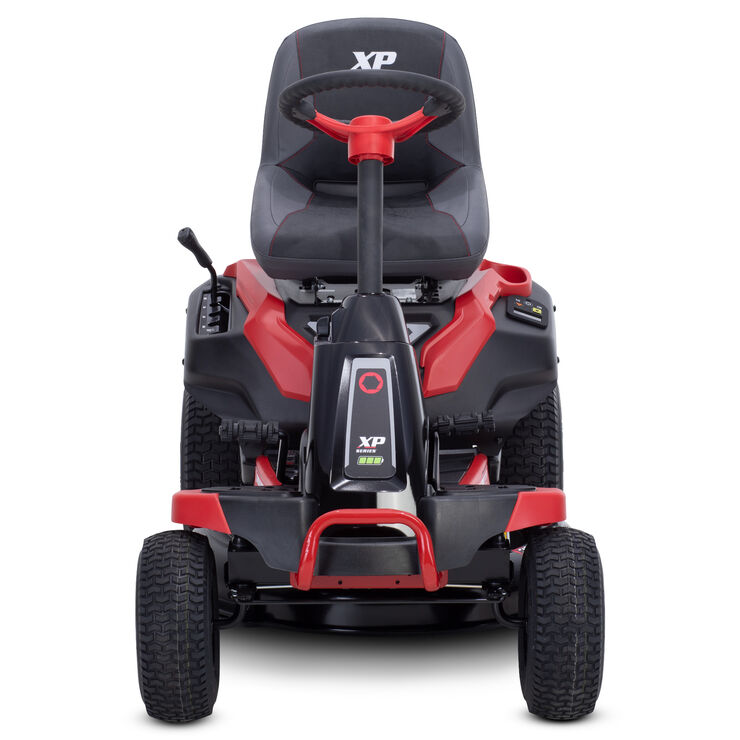

TB30E XP Battery-Powered Compact Riding Mower
Item#:
33AA27JDB66
Electric
price.from
$3,499.00
price.msrp
Electric

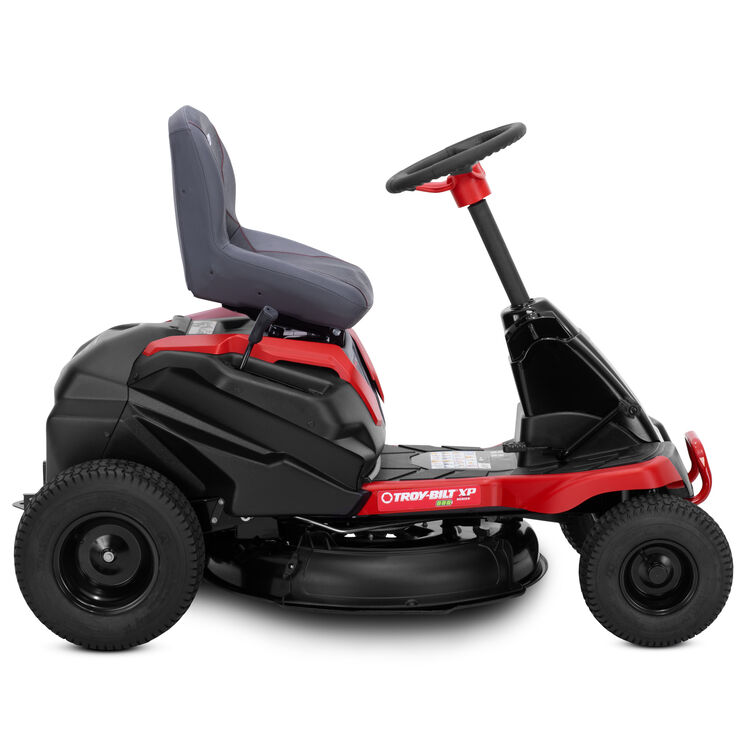

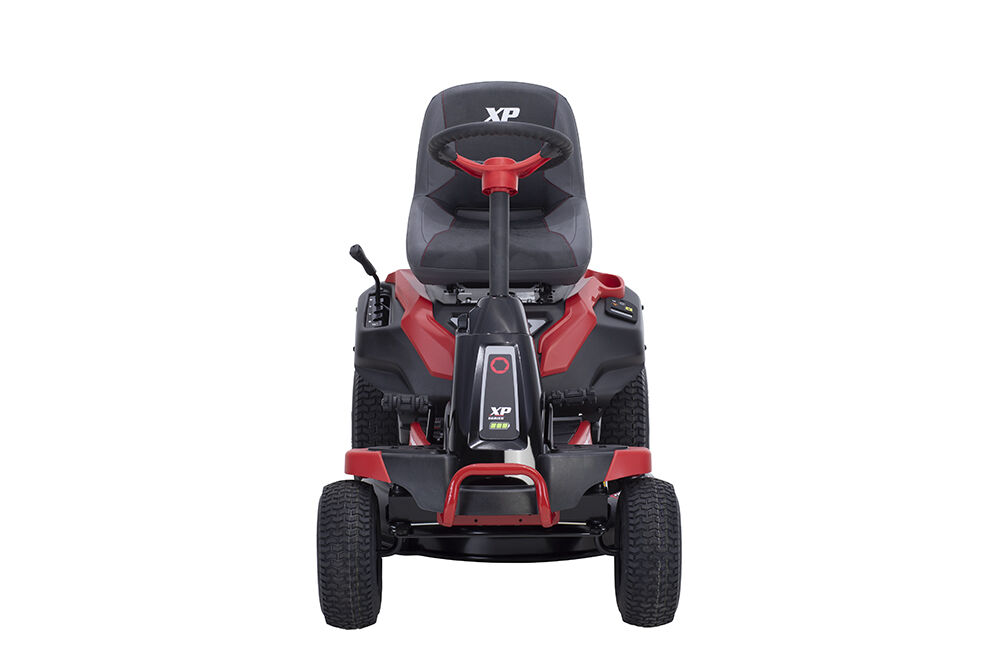

TB30E XP Battery-Powered Compact Riding Mower
Item#:
33AA27JDB66
price.from
$3,499.00
price.msrp

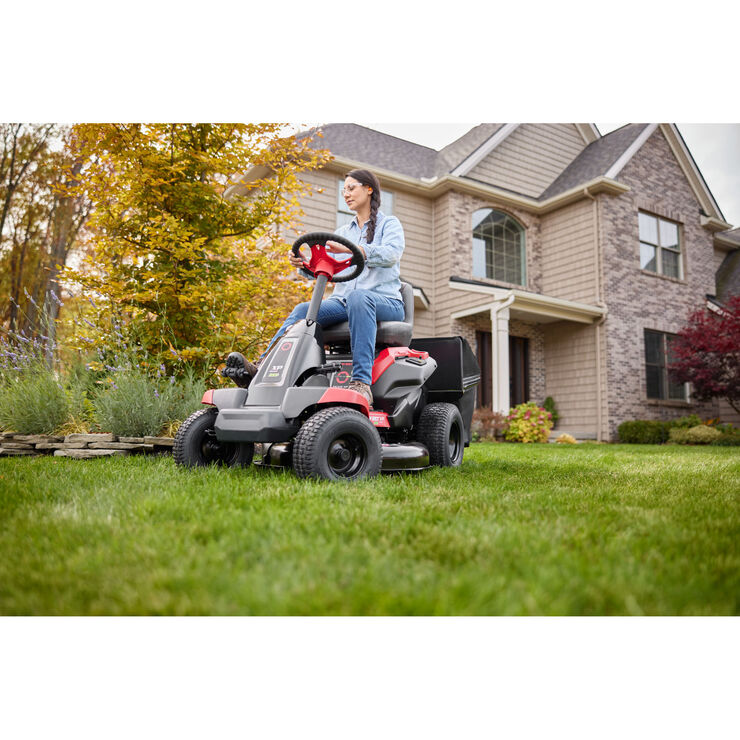

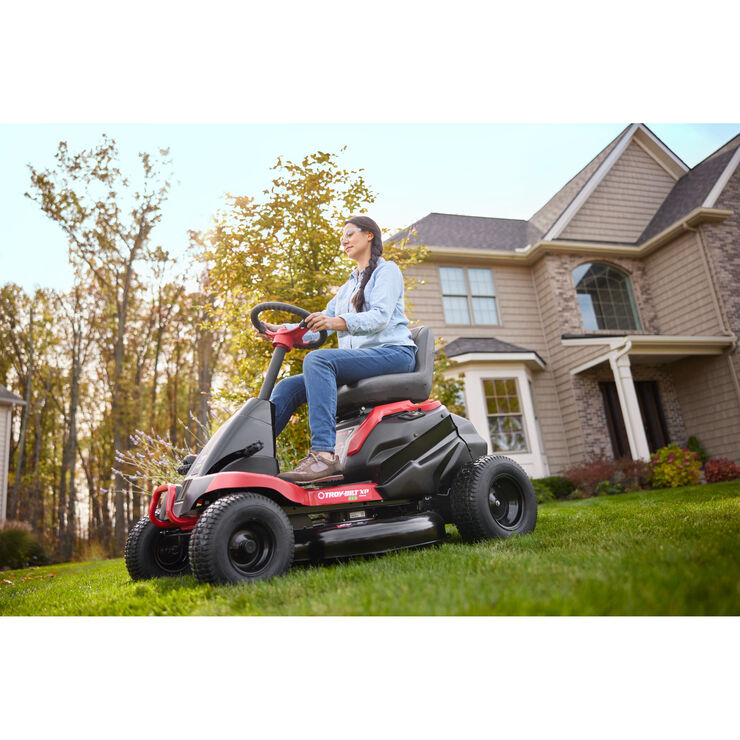

Embrace the ease of use and maintenance of battery power with the Troy-Bilt® TB30E XP compact riding mower. The electric brushless motor provides the power to mow up to 1 acre of grass with up to 1 hour of runtime per charge**. The compact design of the TB30E XP will help you save on storage space, and the 30" deck is an ideal choice for small or gated yards. Regardless of what time of day you need to mow, the battery power provides a noise reduction of up to 65% quieter than gas^.
Documents and Guides
- 56V MAX* (30Ah) Lithium Ion battery with two brushless motors designed for reliable performance
- Mows up to one acre of grass and has up to 1 hour of runtime per charge**
- Up to 65% quieter than gas^

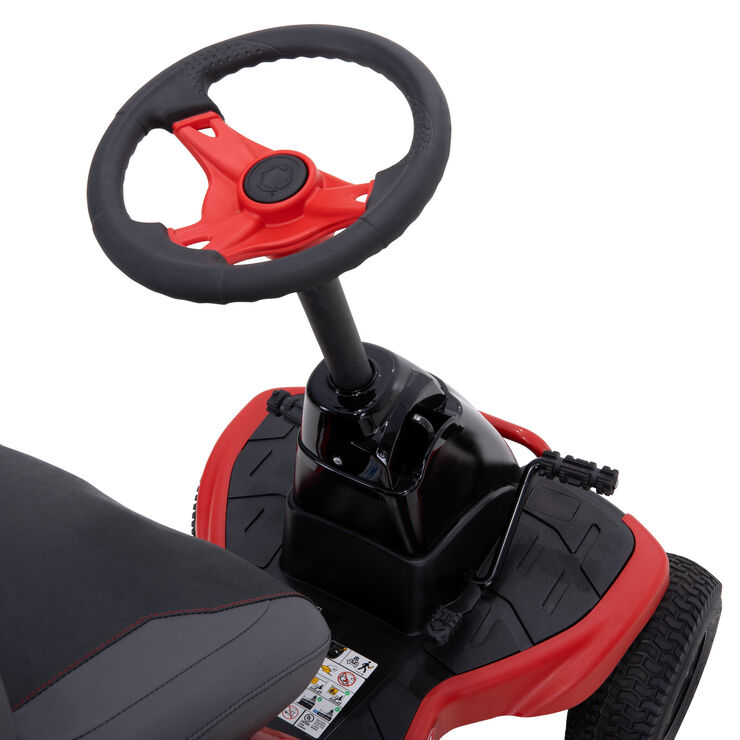

- The electric brushless motor is designed with a convenient foot-pedal control for smooth speed adjustments and maneuverability.
You May Also Like
TB30E XP Battery-Powered Compact Riding Mower Features
Zero Emissions
No exhaust, carbon monoxide, or unburned hydrocarbons from the on-board source of power.
Pride
Headquartered in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— with U.S. and global parts — from Ohio and Mississippi to Tennessee and Arizona.
Li-Ion Power
Lithium-Ion Battery runs at full power with minimal fade and recharges in several hours.
Comfort

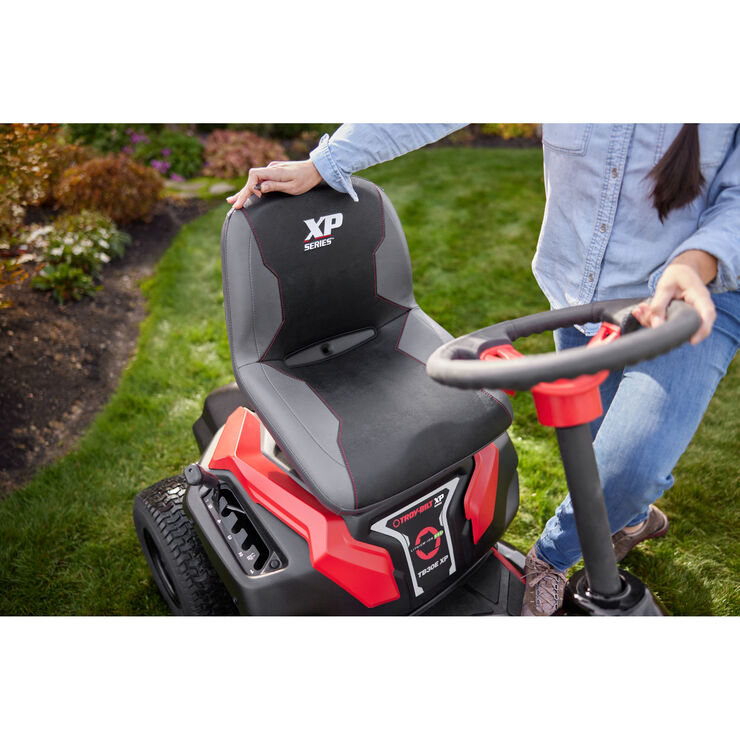

Adjustable, high-back seat helps provide a comfortable ride.
Low Maintenance
Electric Motor and drive system eliminate most traditional mower maintenance tasks.
Quick Cleanup

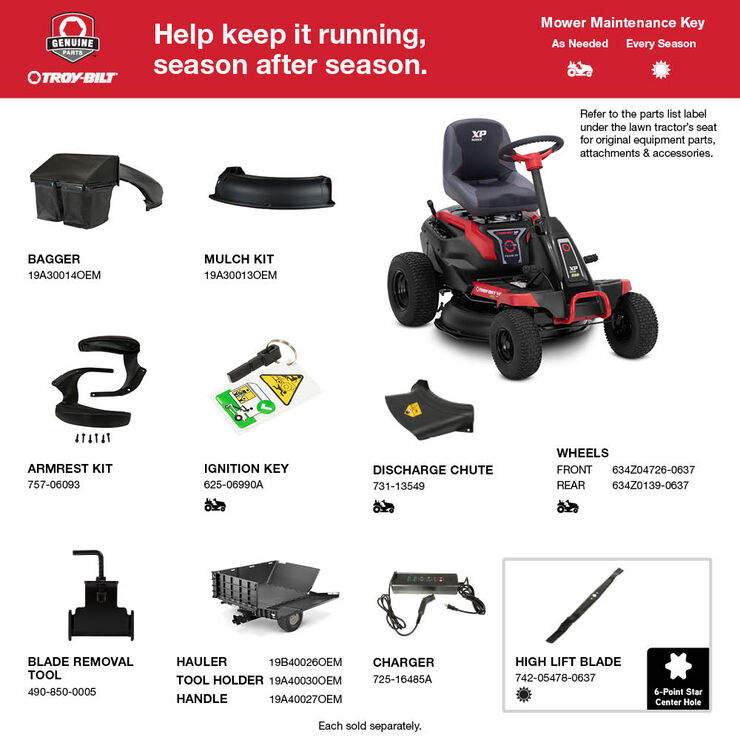

Rear Bagger helps remove grass clippings and leaves for a tidy yard (Rear Bagger Sold Separately).
Quickly Mow Small Areas
Mows up to one acre of grass and has up to 1.0 hours of runtime per charge*
Built for Life®
Troy-Bilt® offers rugged, reliable equipment with a network of service dealers across the country and bilingual support.
Specs & Maintenance
Battery
- Run Time Up to 1 hour or up to 1 acre

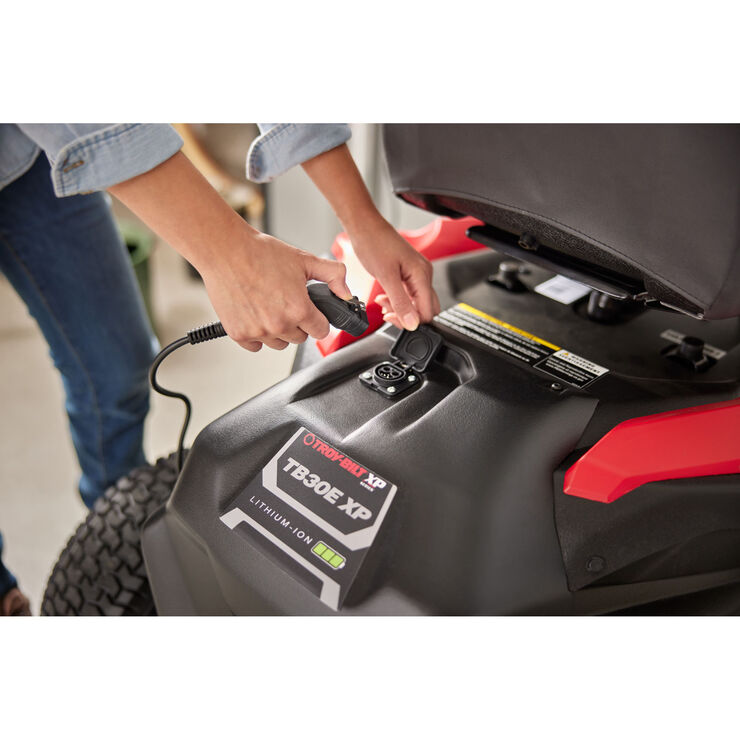

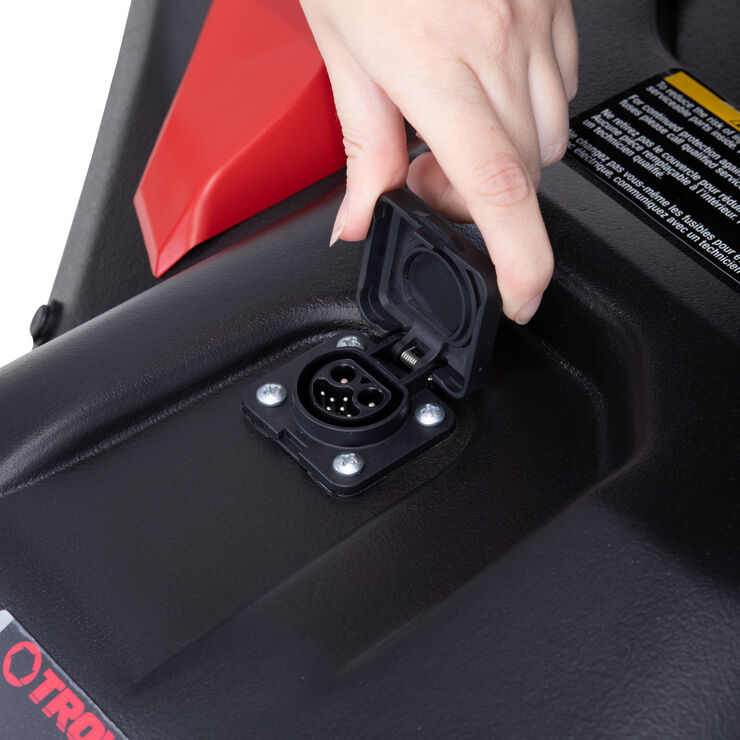

- Charge Time 4 hours
- Battery Type Lithium ion
- Fast Charger Included
- Battery Gauge Digital
- Start Method Push button start
- Battery Voltage 56V MAX*
- Watt Hours 1500Wh
- Ampere Hours 30Ah
Drive System
- Transmission Electric
- Forward Speed 4 MPH / 6.4 km/h
- Reverse Speed 2 MPH / 3.2 km/h
- Rear Axle 3/4"
- Drive System Brushless Electric Motor
- Transmission Control Foot Pedal
- Transmission Housing N/A
- Rear Differential Lock No
- Transmission Input Brushless motor
Cutting Deck
- Deck Cutting Width 30 in
- Deck Wash No
- Deck Material 14-gauge steel
- Deck Engagement (PTO) Electric
- Deck Construction Stamped
- Blade(s) One

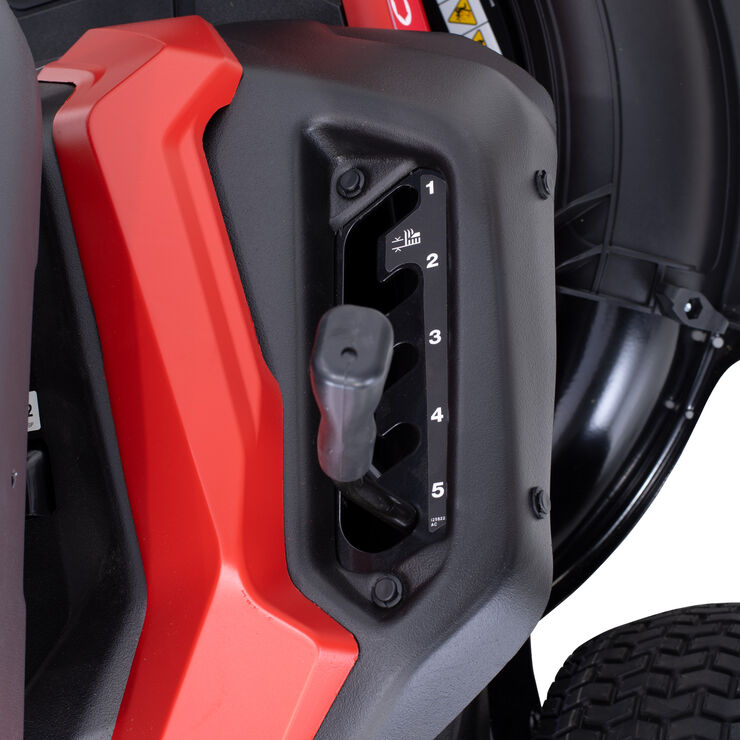

- Deck Lift Manual
- Cutting Height Range 1.5" - 4"
- Anti-Scalping N/A
- Deck Positions 5
Chassis
- Frame Robotically welded
- Turning Radius 18"
- Bumper Steel Tube
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar Steel
Controls
- Cruise Control Yes
- Brakes Disc
Comfort
- Seat Type 15" High-back
- Armrests No
- Seat Adjustment Knob
- Floor Mats Intergral
Wheels
- Bearing Type Poly Bushing
- Rear Tires 16" x 6.5"- 8”
- Front Tires 13" x 5" -6”
- Tire Tread Turf Saver
Specifications
- Mowing Motor Brushless
Additional Specifications
- Hour Meter Yes
- Mulch Kit Available Separately
- Headlight(s) No
- Cup Holder Yes
- Certifications Full UL compliance, ANSI certified
- Operator Presence System Yes
- Model Number 33AA27JDB66
Warranty
- Warranty 3-year unlimited hours
- Frame Warranty 3-year limited
- Front Axle Warranty 3-year limited
- Deck Shell Warranty 3-year limited
- Commercial Warranty No
- Battery Warranty 3-year limited
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Noise Comparison ^ vs. Troy-Bilt TB30B 13AC26JDA23, measurements taken from the operator position in a lab environment.
- Battery Voltage *Maximum initial battery voltage (measured without a workload) is 56 volts. Nominal voltage is 50.4 volts.
- Efficiency **Minimal cutting load, using discharge cutting mode and highest cutting position at full speed with a Troy-Bilt® 56V MAX* 30Ah battery.
Model | Manual | Form Number | |
|---|---|---|---|
| 33AA27JDB66 | MANL:OPER:BATTERY CHARGER:120V | ||
| MANL:OPER:BATTERY CHARGER:120V | 769-25899A | Download | |
| MANL:OPER:BILING:CONSOLIDATED: | 769-26542 | Download | |
| MANL:OPER:BILING:CONSOLIDATED: | 769-26542A | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR:TB eCR12 | 769-26730 | Download |
