Super Bronco™ 46K XP Riding Lawn Mower
Item#:
13APA9BTA66
Best Seller
price.from
$2,599.00
price.msrp
Best Seller
Super Bronco™ 46K XP Riding Lawn Mower
Item#:
13APA9BTA66
price.from
$2,599.00
price.msrp
Tackle mowing tasks and other yard work jobs easily with the Troy-Bilt® Super Bronco™ 46K XP riding mower. A large Step-Thru™ frame is designed for easy on-and-off access and includes a rear hitch for quick attachment of tow-behind accessories, like dump carts, spreaders, or aerators (attachments sold separately). Hydrostatic transmission with cruise control is designed for a smooth change of speed and direction, while the adjustable, high-back seat helps provide comfort. The AGM battery is designed to provide reliable starting season after season.
Documents and Guides
- Powerful 22* HP/725cc twin-cylinder KOHLER engine designed to deliver quiet, balanced performance
- Hydrostatic transmission has foot-pedal control for a smooth change of speed and direction and includes cruise control to help mow at a constant speed
- Adjustable, high-back seat helps provide a comfortable ride, while the cast iron front axle is designed to provide durability and ruggedness
- AGM battery provides a longer lifespan and lower maintenance compared to traditional lead acid wet batteries, with improved starting performance for reliable starting season to season.
You May Also Like
![42" 3-Stage Snow Blower Attachment](https://www.troybilt.com/dw/image/v2/BCSH_PRD/on/demandware.static/-/Sites-mtd-master-catalog/default/dwdd2248e2/products/19B40024OEM_5.jpg?sw=280&sh=280&sm=fit "42" 3-Stage Snow Blower Attachment")
Super Bronco™ 46K XP Riding Lawn Mower Features
XP Series™
Extra power, durability and comfort features in the Troy-Bilt XP line of mowers
Hydrostatic
Hydrostatic transmission with foot pedal control for smooth, clutchless operation.
Durability
Cast iron front pivot bar provides added durability and rugged performance.
Ride With Comfort
Ride with more comfort and support with the adjustable high-back seat.
Maneuverability
Save time with enhanced maneuverability around landscape borders and obstacles thanks to a 16" turn radius
Easy Access
Rugged StepThru™ frame design makes it easy to get on and off your riding mower.
Confidence
3-year limited warranty for extended peace of mind.
Pride
Headquartered in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— with U.S. and global parts — from Ohio and Mississippi to Tennessee and Arizona.
Easier Clean-Up

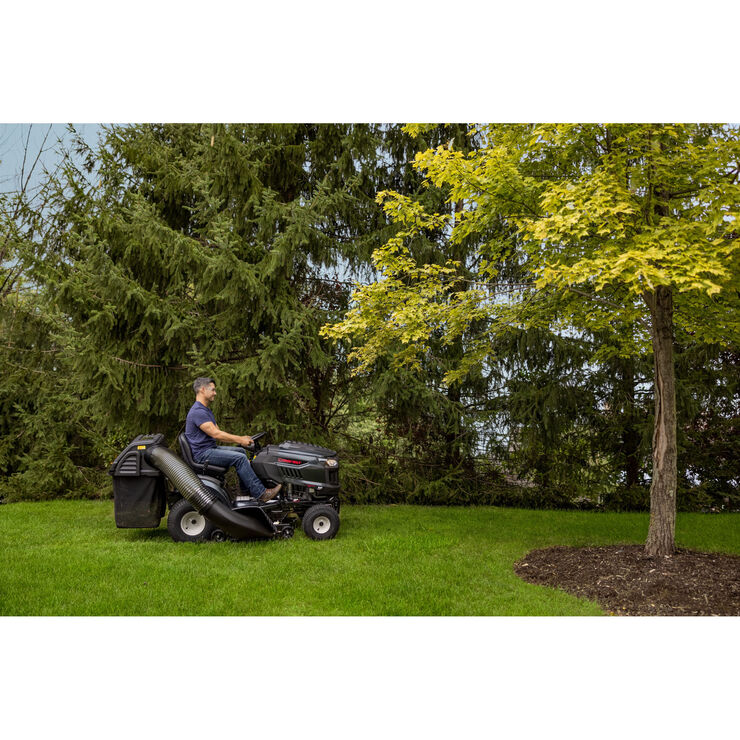

Make yard clean up easier by using an available rear bagger to collect grass clippings and leaves for composting or disposal.
46" Cutting Deck
46" side-discharge cutting deck delivers a clean, even cut.
Versatile Performance
Convenient rear hitch makes attaching available tow-behind attachments, like dump carts, spreaders or aereators, easy and quick.
Reduce Turf Damage
Steel cutting deck with anti-scalp deck wheels to prevent turf damage, delivers a clean, even cut.
Deck Wash
Attach a standard garden hose to the deck wash port to quickly clean underside of deck and prevent buildup of clippings
Specs & Maintenance
Engine
- Engine Brand Kohler®
- Engine Model 7000 Series
- Engine Model Number KT725
- Engine Displacement 725cc
- Engine Output 22HP
- Starter Type Electric
- Fuel Tank Capacity 3.0 gal. US (11.36 L)
- Cylinders Twin
- Engine Start Ignition Key
- Engine Oil Capacity 2.0 qt. US (1.89 L)
- Lubrication Fully pressurized
- Charging System 12 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Tuff Torq® TL-200
- Forward Speed 5.5 MPH / 8.6 KMH
- Reverse Speed 2.5 MPH / 4 KMH
- Drive System Hydrostatic
- Transmission Control Foot Pedal
- Transmission Housing Aluminum
Cutting Deck
- Deck Cutting Width 46 in
- Deck Wash Yes
- Deck Material 12-gauge steel
- Deck Engagement (PTO) Manual
- Deck Construction Stamped
- Blade(s) 2
- Deck Lift Manual
- Cutting Height Range 1.5” - 3.75”
- Anti-Scalping 4 gauge wheels
- Deck Positions 12
Chassis
- Frame Robotically welded
- Turning Radius 16"
- Bumper No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar Cast iron
Controls
- Cruise Control Yes
- Brakes Disc
Comfort
- Seat Type High-back
- Armrests No
- Seat Adjustment Lever
- Floor Mats Rubber
Wheels
- Bearing Type Poly Bushing
- Rear Tires 20"x 8"-8"
- Front Tires 15"x 6"-6"
- Tire Tread Turf Saver
Additional Specifications
- Mulch Kit Available Separately
- Headlight(s) Standard
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 13APA9BTA66
Warranty
- Warranty 3-year limited residential
- Frame Warranty 3-year limited
- Front Axle Warranty 3-year limited
- Deck Shell Warranty 3-year limited
- Commercial Warranty No
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Hosepower *As rated by engine manufacturer
Model | Manual | Form Number | |
|---|---|---|---|
| 13APA9BTA66 | MAN:OPER:DIG:TRILING:NX15 | ||
| MAN:OPER:DIG:TRILING:NX15 | 769-25738B | Download | |
| MAN:OPER:DIG:TRILING:NX15 | 769-25738C | Download | |
| MAN:OPER:DIG:TRILING:NX15 | 769-25738D | Download | |
| MAN:OPER:DIG:TRILING:NX15 | 769-25738E | Download | |
| SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
| SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
| SHEET:SUP:BILING:EPA:EVP:22-23 | 769-26607 | Download | |
| SHEET:SUP:Warranty_Addendum_In | 769-26830 | Download | |
| SHEET:SUPP:WARR/PARTS:TRI:TB X | 769-26248 | Download | |
| SHEET:SUPP:WARR/PARTS:TRI:TB X | 769-26637 | Download | |
| SHEET:SUPP:WARR/PARTS:TRI:TB X | 769-26637A | Download | |
| SHEET:SUPP:WARR/PARTS:TRI:TB X | 769-26842 | Download |
