Pony 42 Riding Lawn Mower
Yard work shouldn't feel like a chore, and with the Troy-Bilt Pony 42 you'll tackle your yard with ease. A rugged and reliable 42-in. steel deck was engineered to fit a step-through frame that provides more space to allow for easier on and off access. A 500cc Briggs & Stratton engine delivers reliable starting and plenty of power to easily tackle your yard. Shift-on-the-Goâ„¢ transmission quickly adjusts speed to suit your needs, giving you control around obstacles with an 18" turning radius. You can count on Troy-Bilt to help make your yard work easier.
Documents and Guides
- 15.5 HP/500cc Briggs & Stratton engine for reliable starting and plenty of power
- Durable and compact AGM battery provides longer lifespan and lower maintenance compared to traditional lead acid wet batteries, with improved starting performance for reliable starting season to season.
- 7-speed continuously variable (CVT) transmission has dash panel control that is easy to see and adjust
- 42-in side-discharge cutting deck delivers a clean, even cut
- Step-Thru frame design provides easier on and off access by providing more leg room
- Maintain control with easier navigation around landscape borders and obstacles with 18" turn radius
Pony 42 Riding Lawn Mower Features

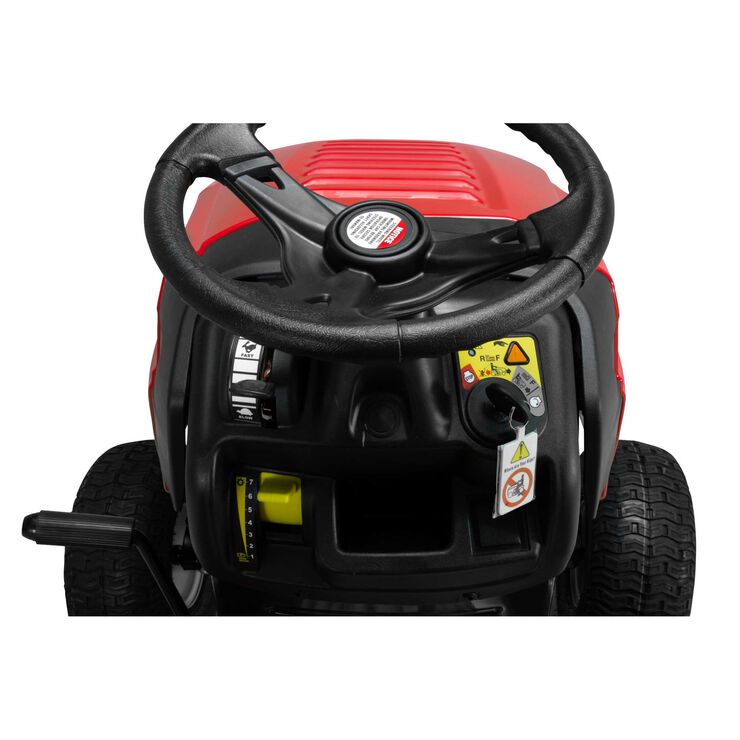

Shift-On-The-Go™

Continuously variable transmission has dash panel control that makes it easy to adjust speeds.

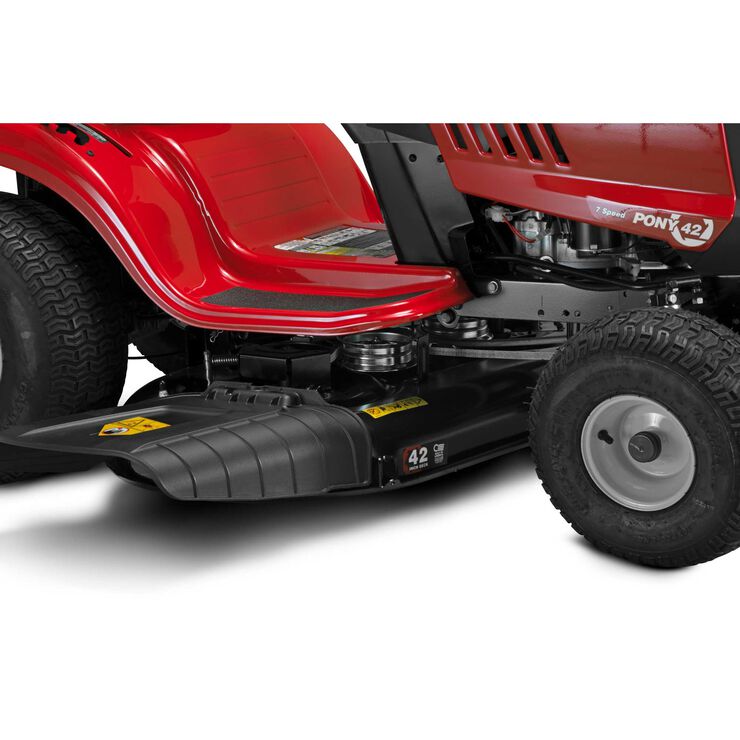

42" Cutting Deck

42" side-discharge cutting deck delivers a clean, even cut.
Quickly Adjust Cutting Height

5-position height adjustment on the fender makes it easy to change cutting heights from 1.5" - 4"
Maneuverability

Easier navigation around landscape borders and obstacles with 18" turn radius.
Easy Access

Rugged StepThruâ„¢ frame design makes it easy to get on and off your riding mower.
Easier Clean-Up

Make yard clean up easier by using an available rear bagger to collect grass clippings and leaves for composting or disposal.
Confidence

Backed with a 2-year limited warranty for peace of mind
Pride

Headquartered in Valley City, OH, select Troy-Bilt items are designed, built and tested right here in the U.S.— with U.S. and global parts — from Ohio and Mississippi to Tennessee and Arizona.
Specs & Maintenance
Engine
- Engine Brand Briggs & Stratton®
- Engine Model Powerbuilt
- Engine Model Number 31R707-0033
- Engine Displacement 500cc
- Engine Output 15.5HP
- Starter Type Electric
- Fuel Tank Capacity 1.36 gal. US (5.15 L)
- Cylinders Single
- Engine Start Ignition Key
- Engine Oil Capacity 1.3 qt. US (1.23 L)
- Lubrication Fully pressurized
- Charging System 3 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
Battery
- Battery 210 CCA
- Battery Type AGM (Absorbent Glass Mat)
- Battery Voltage 12V
Drive System
- Transmission Troy-Bilt
- Forward Speed 5.5 MPH / 8.6 KMH
- Reverse Speed 2.5 MPH / 4 KMH
- Rear Axle 3/4"
- Drive System CVT
- Transmission Control 7-Speed Hand Lever
- Transmission Housing Aluminum
- Rear Differential Lock No
Cutting Deck
- Deck Cutting Width 42 in
- Deck Wash No
- Deck Material 13-gauge steel
- Deck Engagement (PTO) Manual lever
- Deck Construction Stamped
- Blade(s) Two
- Deck Lift Hand lever
- Cutting Height Range 1.5" - 4"
- Anti-Scalping No
- Deck Positions 5
Warranty
- Warranty 2-year limited residential
- Frame Warranty 2-year limited
- Front Axle Warranty 2-year limited
- Deck Shell Warranty 2-year limited
- Commercial Warranty No
Chassis
- Frame Robotically welded
- Turning Radius 18"
- Bumper No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar 14-gauge steel
Controls
- Cruise Control No
- Brakes Disc
Comfort
- Seat Type Low-back
- Armrests No
- Seat Adjustment Knob
- Floor Mats Grit
Wheels
- Bearing Type Poly Bushing
- Rear Tires 20"x 8"-8"
- Front Tires 15"x 6"-6"
- Tire Tread Turf Saver
Additional Specifications
- Mulch Kit Available Separately
- Headlight(s) Standard
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 13AM77BS023
Disclaimers
- Specifications Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
- Hosepower *As rated by engine manufacturer
Model | Manual | Form Number | |
---|---|---|---|
13AM77BS023 | MANL:OPER:DIG:TRILING:LT5 | ||
MANL:OPER:DIG:TRILING:LT5 | 769-25793 | Download | |
MANL:OPER:DIG:TRILING:LT5 | 769-25793A | Download | |
SHEET:SUP:BILING:EPA:EVP:18-19 | 769-23590 | Download | |
SHEET:SUP:BILING:EPA:EVP:20-21 | 769-25879 | Download | |
SHEET:SUP:BILING:EPA:EVP:21-22 | 769-26272 | Download | |
SHEET:SUPP:FRENCH:WARR/PARTS:TB LT5 | 769-17291D_FR | Download | |
SHEET:SUPP:WARR/PARTS:TB LT5 | 769-17291D | Download | |
SHEET:SUPP:WARR/PARTS:TRI:TB L | 769-26293 | Download |
