Pony 36 Riding Lawn Mower
Interest will be charged from the purchase date if the purchase balance is not paid in full at the end of the promotional period. Advertised minimum payment is greater than required minimum payment.
36-in deck is ideal for smaller yards and gated areas. The Pony 36 is tested for dependable starting in all weather conditions. Keep your lawn healthier with the included mulch kit.
Documents and Guides
- High-performing Briggs & Stratton engine is tested to ensure dependable starting in all weather conditions
- Built In America with U.S and Global Parts since 1937
- 36-in deck size maneuvers better in smaller areas and can be easily stored
- Keep your lawn healthier by mulching grass clippings with included mulch kit to help avoid thatch and return nutrients in to the soil
- 7-speed transmission has dash panel control that is easy to see and adjust
- Make yard clean up easier by using a rear bagger to collect grass clippings and leaves for use as compost or bag for disposal (sold separately)
- Maintain control with easier navigation around landscape borders and obstacles with 18-in turn radius
Pony 36 Riding Lawn Mower Features

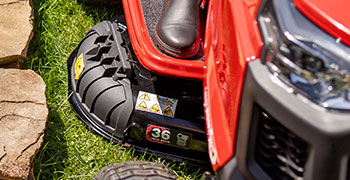

36-Inch Cutting Deck
36-in deck size maneuvers better in smaller areas and can be easily stored
Headquarted in Valley City, OH, our reliable equipment is designed, built and tested right here in the U.S.— from Ohio and Mississippi to Tennessee and Arizona
Make yard clean up easier by using a rear bagger to collect grass clippings and leaves for use as compost or bag for disposal (sold separately)
Specs & Maintenance
- Engine Brand Briggs & Stratton
- Engine Model Powerbuilt
- Engine Model Number 21R807-0089
- Engine Displacement 344cc
- Engine Output 11.5HP
- Starter Type Electric
- Fuel Tank Capacity 1.36 gal. US (5.15 L)
- Cylinders Single
- Engine Start Ignition Key
- Engine Oil Capacity 1.3 qt. US (1.23 L)
- Lubrication Fully pressurized
- Charging System 3.75 amp regulated
- Fuel Gauge No
- Governor Mechanical
- Choke Choke-a-matic
- Air Filter Dual element
- Oil Filter Yes
- Fuel Delivery Carburetor
- Battery 150 CCA
- Battery Type Standard Lead Acid
- Battery Voltage 12V
- Transmission Troy-Bilt
- Forward Speed 5.5 MPH / 8.6 KMH
- Reverse Speed 2.5 MPH / 4 KMH
- Rear Axle 3/4"
- Drive System CVT
- Transmission Control 7-Speed Hand Lever
- Transmission Housing Aluminum
- Rear Differential Lock No
- Deck Cutting Width 36 in
- Deck Wash No
- Deck Material 14-gauge steel
- Deck Engagement (PTO) Manual lever
- Deck Construction Stamped
- Blade(s) Two
- Deck Lift Hand lever
- Cutting Height Range 1.5" - 4"
- Anti-Scalping No
- Deck Positions 5
- Warranty 2-year limited residential
- Frame Warranty 2-year limited
- Front Axle Warranty 2-year limited
- Deck Shell Warranty 2-year limited
- Commercial Warranty No
- Frame Robotically welded
- Turning Radius 18"
- Bumper No
- Rear Tow Hitch Yes
- Corrosion Protection Yes
- Front Pivot Bar 14-gauge steel
- Cruise Control No
- Brakes Disc
- Seat Type Low Back
- Armrests No
- Seat Adjustment Knob
- Floor Mats Grit
- Bearing Type Poly Bushing
- Rear Tires 20"x 8"-8"
- Front Tires 15"x 6"-6"
- Tire Tread Turf Saver
- Mulch Kit Included
- Headlight(s) Standard
- Cup Holder Yes
- Operator Presence System Yes
- Model Number 13AC77BY066
- Specifications Disclaimer Specifications subject to change without notice and without incurring obligation. Products depicted on website and other advertisements are for demonstration purposes only. Actual products offered for sale may vary in design, required attachments, safety features and non-functional appearance from. See other general disclaimers at the bottom of our website.
IMPORTANT INFORMATION - PLEASE READ CAREFULLY
The Operator's Manual is an important part of your new outdoor power equipment. It will help you assemble, prepare, maintain and safely operate your machine. Your outdoor power equipment was built to be operated according to the rules and instructions for safe operation which are contained in the operator's manual and on the machine itself.
Safety rules and instructions, if not followed, could endanger the personal safety and/or property of the operator and others. Read and follow all instructions in the manual before attempting to operate your outdoor power equipment. As with any type of power equipment, carelessness or error on the part of the operator can result in serious injury. Your machine is capable of amputating hands and feet and throwing objects. Failure to observe the safety rules and instructions, both on the machine and in the Operator's Manual, could result in serious injury or death.
Important: Troy-Bilt, its parents, affiliates and subsidiaries, is concerned about the safety of its customers and others. Due to the size of the Operator's Manual, some Operator's Manuals are broken down into two or more segments so that the entire Operator's Manual can be downloaded easily. Troy-Bilt is requiring all those who wish to download a copy of the Operator's Manual to acknowledge that he/she will download the portion of the Operator's Manual that contains the Important Safe Operation Practices section, as stated below. This is to ensure that this section is reviewed and accessible when operating, servicing and/or maintaining the machine.
NOTICE: BY CONTINUING I AFFIRM THAT I WILL DOWNLOAD THAT PORTION OF THE OPERATOR'S MANUAL WHICH CONTAINS SECTION 1: IMPORTANT SAFE OPERATION PRACTICES, AND THAT I WILL READ AND FOLLOW THE SAFETY RULES AND INSTRUCTIONS PROVIDED.
By clicking "I AGREE" below, you certify that you have read and accepted the above notice.
